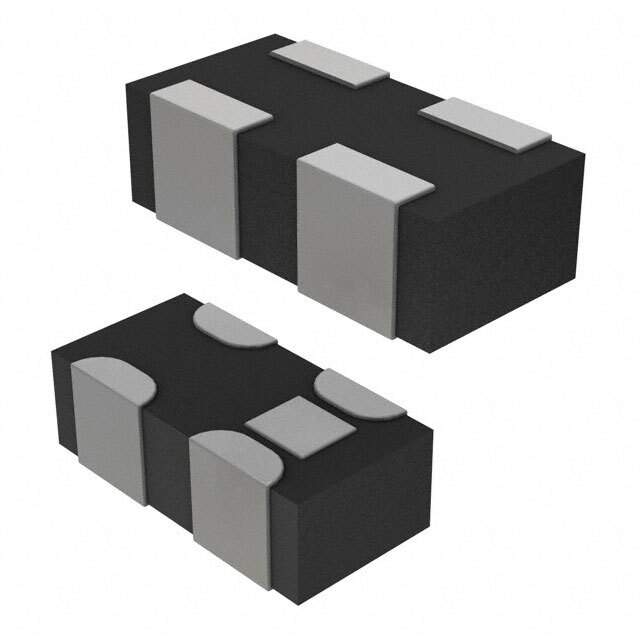

DPX105850DT-6019A1 Real Image
Same model may have multiple batches, images only for reference.

DPX105850DT-6019A1

Part No DPX105850DT-6019A1
Manufacturer TDK Corporation
Catalog RF Multiplexers
Description RF DIPLEXER 2.45GHZ/5.5GHZ 0402 / RF Diplexer 2.4GHz ~ 2.5GHz / 5.15GHz ~ 5.85GHz 0402 (1005 Metric), 4 PC Pad
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Multiplexers
Mfr TDK Corporation
Series DPX
Package Tape & Reel
Type Diplexer
Frequency Bands (Low / High) 2.4GHz ~ 2.5GHz / 5.15GHz ~ 5.85GHz
Low Band Attenuation (min / max dB) 21.00dB / -
High Band Attenuation (min / max dB) 14.00dB / -
Mounting SMD (SMT)
Package / Case 0402 (1005 Metric), 4 PC Pad
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 445-172987-6,445-172987-2,445-172987-1
Standard Package 10,000
Win Source Part Number 1055933-DPX105850DT-6019A1
Ultra Librarian 3D Model Ultra Librarian DPX105850DT-6019A1 CAD Model

Description

The TDK Corporation DPX105850DT-6019A1 is a diplexer type RF multiplexer that is designed to operate in frequency bands from 2.4GHz to 2.5GHz and 5.15GHz to 5.85GHz.

  • MSL Level: 1 (Unlimited)
  • HTSUS: 8504.50.8000
  • Package Type: tape & reel
  • Mounting: SMD (SMT)
  • Low Band Attenuation: 21.00dB
  • High Band Attenuation: 14.00dB
  • Package/Case: 0402 (1005 Metric), 4 PC Pad
  • Alternative Part: DPX105850DT-6019A1DPX105850DT6019A1
  • ECCN: EAR99
