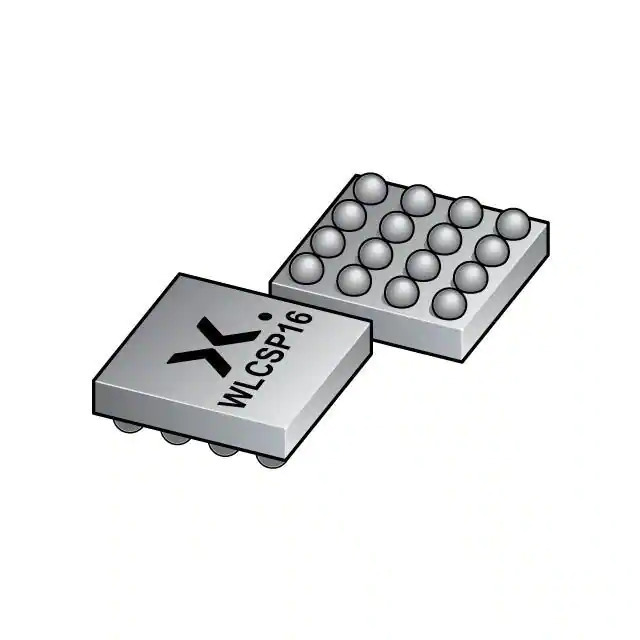

NXS0506UPZ Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

NXS0506UPZ

Part No NXS0506UPZ
Manufacturer Nexperia USA Inc.
Catalog Logic - Translators, Level Shifters
Description IC TRANSLATOR BIDIR 16WLCSP
Datasheet
NXS0506UPZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Translators, Level Shifters
Mfr Nexperia USA Inc.
Series -
Package Tape & Reel
Product Status Active
Translator Type Voltage Level
Channel Type Bidirectional
Number of Circuits 1
Channels per Circuit 6
Voltage - VCCA 1.1 V ~ 1.95 V
Voltage - VCCB 1.7 V ~ 3.6 V
Input Signal -
Output Signal -
Output Type Non-Inverted
Data Rate 104Mbps
Temperature Range - Operating -40°C ~ 85°C (TA)
Features -
Mounting Type Surface Mount
Package / Case 16-XFBGA, WLCSP
Supplier Device Package 16-WLCSP (1.46x1.46)
Base Product Number NXS0506
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1371033-NXS0506UPZ
Ultra Librarian 3D Model Ultra Librarian NXS0506UPZ CAD Model

Description

The NXS0506UPZ is a bidirectional voltage level translator integrated circuit.

  • Manufacturer: Nexperia USA Inc.
  • Temperature Range: -40°C to 85°C
  • Data Rate: 104Mbps
  • Channels per Circuit: 6
  • VCCA Voltage Range: 1.1V to 1.95V
  • VCCB Voltage Range: 1.7V to 3.6V
  • Package: 16-XFBGA
  • Mounting Type: Surface Mount
