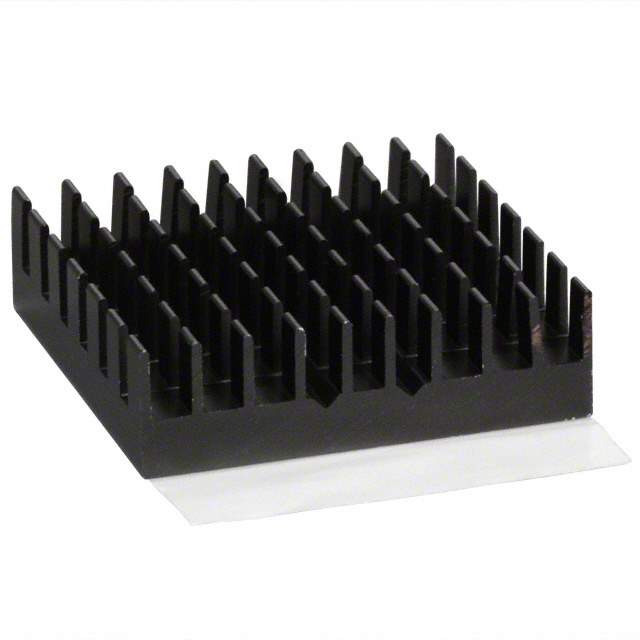

ATS-55325D-C1-R0 Real Image
Same model may have multiple batches, images only for reference.

ATS-55325D-C1-R0

Part No ATS-55325D-C1-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEAT SINK 32.5 X 32.5 X 9.5MM / Heat Sink BGA Aluminum Top Mount
Datasheet
ATS-55325D-C1-R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Fans, Thermal Management>Thermal - Heat Sinks
Mfr Advanced Thermal Solutions Inc.
Package Bulk
Type Top Mount
Package Cooled BGA
Attachment Method Thermal Tape, Adhesive (Included)
Shape Square, Pin Fins
Length 1.280" (32.51mm)
Width 1.280" (32.51mm)
Fin Height 0.374" (9.50mm)
Thermal Resistance @ Forced Air Flow 12.50°C/W @ 200 LFM
Material Aluminum
Material Finish Black Anodized
Base Product Number ATS-553
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.5100
Other Names ATS-55325D-C2-R0,ATS1273,ATS55325DC2R0
Standard Package 100
Win Source Part Number 1182619-ATS-55325D-C1-R0
Ultra Librarian 3D Model Ultra Librarian ATS-55325D-C1-R0 CAD Model

Description

The Advanced Thermal Solutions Inc. 1182619-ATS-55325D-C1-R0 heat sink is designed for use in thermal management applications.

  • Package Cooled: BGA
  • Attachment Method: Thermal Tape, Adhesive
  • Width: 1.280 inches (32.51mm)
  • Length: 1.280 inches (32.51mm)
  • Fin Height: 0.374 inches (9.50mm)
  • Thermal Resistance @ 200 LFM Forced Air Flow: 12.50°C/W
  • Finish: Black Anodized
  • REACH: Unaffected
