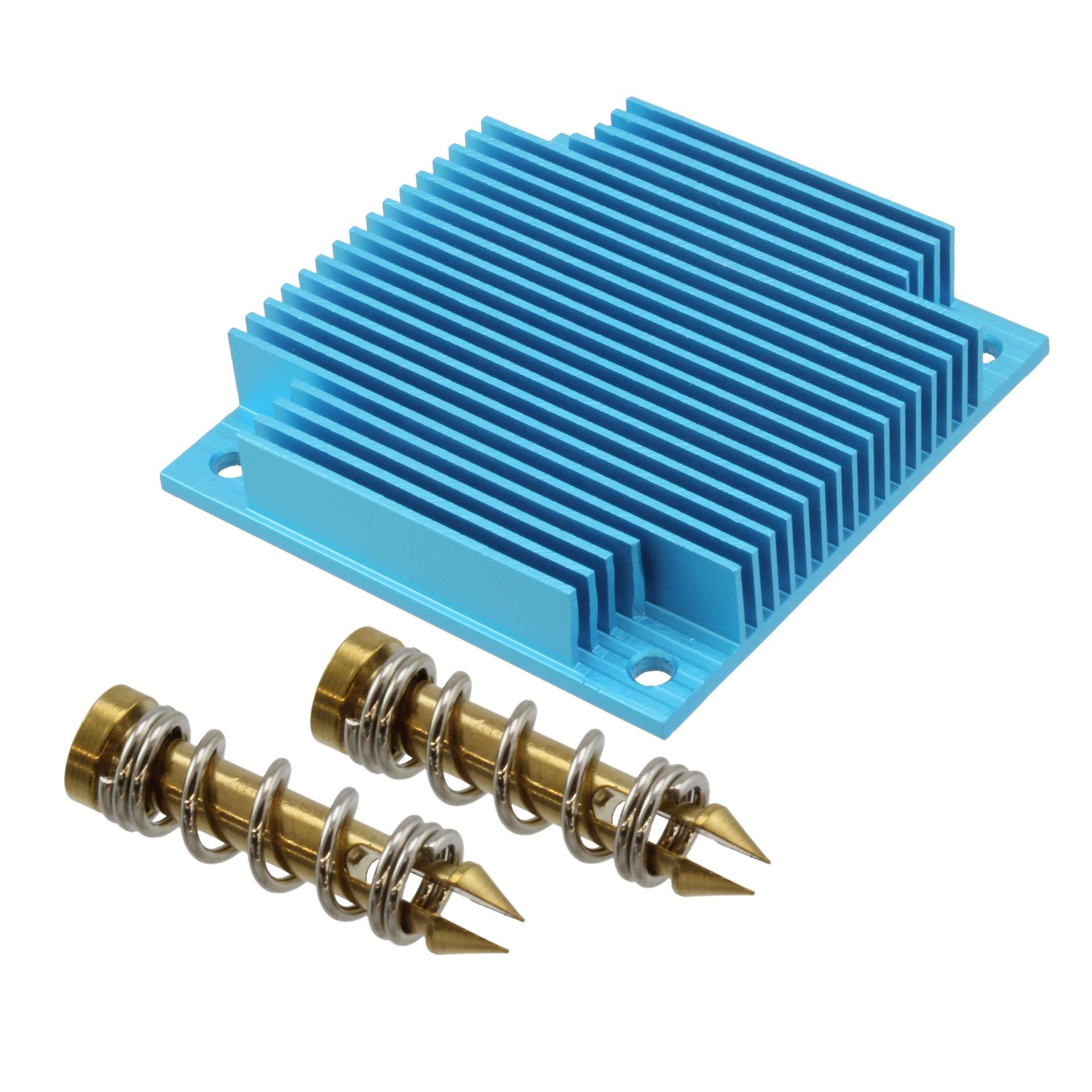

ATS-10C-40-C1-R0 Real Image
Same model may have multiple batches, images only for reference.

ATS-10C-40-C1-R0

Part No ATS-10C-40-C1-R0
Manufacturer Advanced Thermal Solutions Inc.
Catalog Thermal - Heat Sinks
Description HEATSINK 57.9X60.96X11.43MM
Datasheet
ATS-10C-40-C1-R0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Fans, Thermal Management
Manufacturer Advanced Thermal Solutions Inc.
Status Active
Type Top Mount
Package Cooled Assorted (BGA, LGA, CPU, ASIC...)
Attachment Method Push Pin
Shape Rectangular, Fins
Length 2.280" (57.90mm)
Width 2.400" (60.96mm)
Height Off Base (Height of Fin) 0.450" (11.43mm)
Thermal Resistance @ Forced Air Flow 14.55°C/W @ 100 LFM
Material Aluminum
Material Finish Blue Anodized
Win Source Part Number 115685-ATS-10C-40-C1-R0
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian ATS-10C-40-C1-R0 CAD Model

Description

ATS-10C-40-C1-R0: Enhanced Cooling System Component

The ATS-10C-40-C1-R0 is a premium cooling system component designed to provide efficient thermal management in diverse environments. It plays a critical role in maintaining the stability and performance of electronic systems.

  • Applications/Projects:
    • Industrial automation systems
    • Networking equipment
    • Embedded systems
  • Features and Benefits:
    • High thermal efficiency for improved cooling
    • Robust build quality for lasting durability
    • Flexible installation options for various setups

Employ the ATS-10C-40-C1-R0 for optimal thermal regulation, ensuring your electronic components are safeguarded against thermal-related failures.
