Same model may have multiple batches, images only for reference.

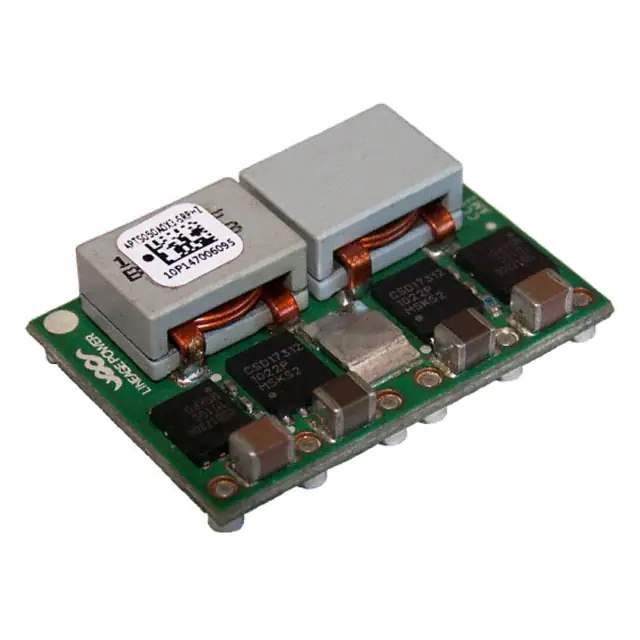

APTS050A0X3-SRPHZ Real Image
Same model may have multiple batches, images only for reference.

APTS050A0X3-SRPHZ

Part No APTS050A0X3-SRPHZ
Manufacturer ABB Embedded Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.7-2V 100W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr ABB Embedded Power
Series GigaTLynx™
Package Tape & Reel
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 14V
Voltage - Output 1 0.7 ~ 2V
Current - Output (Max) 50A
Power (Watts) 100 W
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 90.1%
Mounting Type Surface Mount
Package / Case 14-SMD Module
Size / Dimension 1.30" L x 0.90" W x 0.39" H (33.0mm x 22.9mm x 10.0mm)
Control Features Enable, Active Low
Base Product Number APTS050
Standard Package 140 pcs
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 564245-APTS050A0X3-SRPHZ
Ultra Librarian 3D Model Ultra Librarian APTS050A0X3-SRPHZ CAD Model

Description

The GigaTLynx™ series is a high-power and high-efficiency power supply solution for board mount applications.

  • Series: GigaTLynx™
  • Type: Non-Isolated PoL Module
  • Power Output: 100W
  • Maximum Output Current: 50A
  • Voltage Input Range: 4.5V to 14V
  • Features: Remote On/Off, overcurrent protection (OCP), overtemperature protection (OTP), and undervoltage lockout (UVLO)
  • Package Size: 1.30" L x 0.90" W x 0.39" H (33.0mm x 22.9mm x 10.0mm)
  • Application: ITE (Commercial)
  • Package Type: Tape & Reel
  • Efficiency: 90.1%
  • Mounting: Surface Mount
