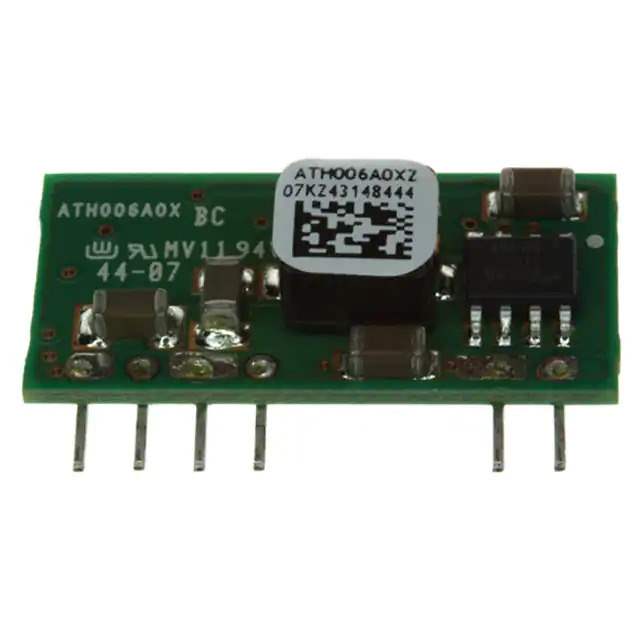

ATH006A0XZ Real Image
Same model may have multiple batches, images only for reference.

ATH006A0XZ

Part No ATH006A0XZ
Manufacturer ABB Embedded Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 0.8-3.6V 21W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr ABB Embedded Power
Series Austin MicroLynx™ II
Package Bulk
Product Status Active
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 2.4V
Voltage - Input (Max) 5.5V
Voltage - Output 1 0.8 ~ 3.6V
Current - Output (Max) 6A
Power (Watts) 21 W
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 96%
Mounting Type Through Hole
Package / Case 6-SIP Module
Size / Dimension 1.00" L x 0.26" W x 0.50" H (25.4mm x 6.7mm x 12.7mm)
Control Features Enable, Active Low
Base Product Number ATH006
Standard Package 96 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 566616-ATH006A0XZ
Ultra Librarian 3D Model Ultra Librarian ATH006A0XZ CAD Model

Description

The Austin MicroLynx™ II is a non-isolated PoL module designed for power supplies in board mount DC-DC converters. With a compact size of 1.00" L x 0.26" W x 0.50" H (25.4mm x 6.7mm x 12.7mm), it offers a power output of 21W and an efficiency of 96%.

  • Power Output: 21W
  • Efficiency: 96%
  • Features: Remote On/Off, OCP, OTP, and UVLO
  • Voltage Input Range: 2.4V to 5.5V
  • Output Voltage Range: 0.8V to 3.6V (Single)
  • Application: ITE (Commercial)
  • Mounting Type: Through Hole
  • Package: 6-SIP Module
  • Operating Temperature Range: -40°C to 85°C
  • Manufacturer: ABB Embedded Power
  • Packaging: Bulk
  • Standard Package: 96 pcs
