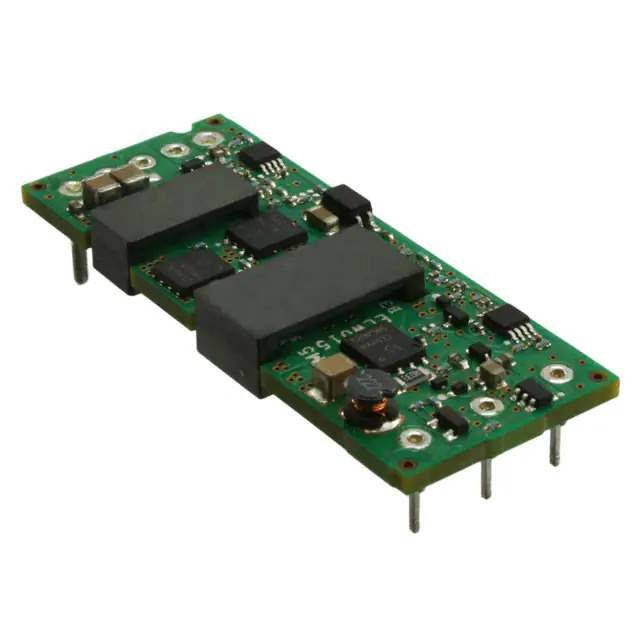

Same model may have multiple batches, images only for reference.

ESTW015A0F641Z

Name: ESTW015A0F641Z
Brand: ABB Embedded Power
SKU: 846852
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	ESTW015A0F641Z
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V 75W / Isolated Module DC DC Converter 1 Output 5V 15A 36V - 75V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	ABB Embedded Power
Series	Barracuda™ ESTW015A0A (75W)
Package	Tray
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	5V
Current - Output (Max)	15A
Power (Watts)	75 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	90%
Mounting Type	Through Hole
Package / Case	8-DIP Module
Size / Dimension	2.28" L x 0.90" W x 0.30" H (57.9mm x 22.8mm x 7.6mm)
Control Features	Enable, Active Low
Base Product Number	ESTW015
Standard Package	36 pcs
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	846852-ESTW015A0F641Z
Ultra Librarian 3D Model	Ultra Librarian ESTW015A0F641Z CAD Model

Alternative Products

Description

The Barracuda™ ESTW015A0A (75W) 846852-ESTW015A0F641Z is an isolated module designed for power supplies in board mount DC-DC converters.

Power Output: 75W
Application: ITE (Commercial)
Features: Remote On/Off, OCP, OTP, OVP, UVLO
Size: 2.28" L x 0.90" W x 0.30" H (57.9mm x 22.8mm x 7.6mm)
Maximum Output Current: 15A
Input Voltage: 36V to 75V
Output Voltage: 5V
Efficiency: 90%
Mounting Type: Through Hole
Package: 8-DIP Module
Operating Temperature: -40°C to 85°C
ECCN: EAR99
Product Status: Obsolete
