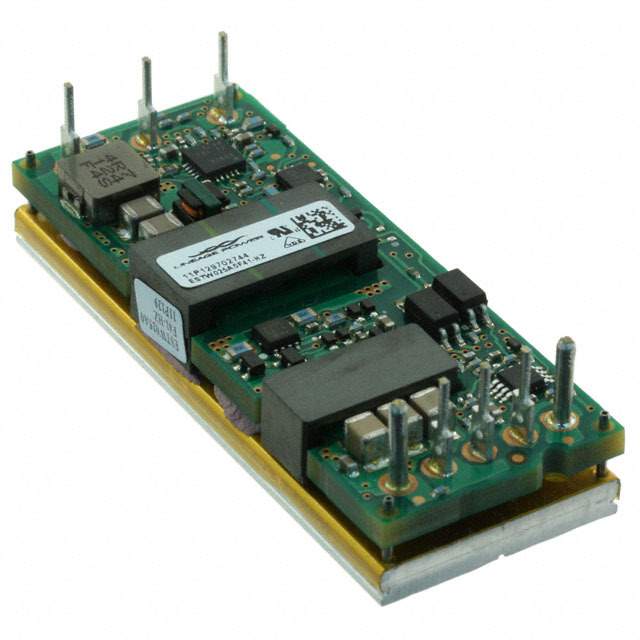

Same model may have multiple batches, images only for reference.

ESTW025A0F41-HZ

Name: ESTW025A0F41-HZ
Brand: ABB Embedded Power
SKU: 1338659
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	ESTW025A0F41-HZ
Manufacturer	ABB Embedded Power
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 83W / Isolated Module DC DC Converter 1 Output 3.3V 25A 36V - 75V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	ABB Power Electronics Inc.
Series	STINGRAY™ ESTW025A0F
Package	Bulk
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	36V
Voltage - Input (Max)	75V
Voltage - Output 1	3.3V
Current - Output (Max)	25A
Power (Watts)	83 W
Voltage - Isolation	2.25 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP, UVLO
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	92%
Mounting Type	Through Hole
Package / Case	8-DIP Module, 1/8 Brick
Size / Dimension	2.28" L x 0.90" W x 0.48" H (57.9mm x 22.8mm x 12.2mm)
Control Features	Enable, Active Low
Base Product Number	ESTW025
Standard Package	36
MSL Level	2A (4 Weeks)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1338659-ESTW025A0F41-HZ
Ultra Librarian 3D Model	Ultra Librarian ESTW025A0F41-HZ CAD Model

Alternative Products

Description

The ESTW025A0F41-HZ is an isolated module from the Stingray ESTW025A0F series of DC-DC converters from ABB Power Electronics Inc.

Power Rating: 83W
Voltage Isolation: 2.25kV
Remote On/Off: Yes
Protection: Overcurrent, Overtemperature, Overvoltage, Undervoltage
Current Output: 25A
Voltage Input: 36V to 75V
Voltage Output: 3.3V
Efficiency: 92%
Package/Case: 8-DIP Module, 1/8 Brick
Mounting: Through-Hole
Application: ITE (Commercial)
