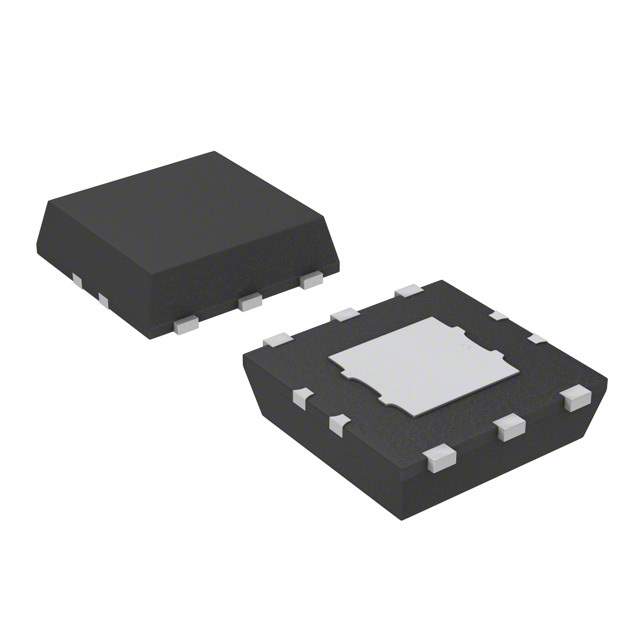

S-1170B38PD-OTXTFG Real Image
Same model may have multiple batches, images only for reference.

S-1170B38PD-OTXTFG

Part No S-1170B38PD-OTXTFG
Manufacturer ABLIC U.S.A. Inc.
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LINEAR 3.8V 800MA 6HSON  /  Linear Voltage Regulator IC Positive Fixed 1 Output 800mA 6-HSON (A) (2.9x2.8)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - Voltage Regulators - Linear
Mfr ABLIC Inc.
Series S-1170
Package Tape & Reel (TR)
Product Status Obsolete
Output Configuration Positive
Output Type Fixed
Number of Regulators 1
Voltage - Input (Max) 6.5V
Voltage - Output (Min/Fixed) 3.8V
Voltage Dropout (Max) 0.18V @ 300mA
Current - Output 800mA
Current - Quiescent (Iq) 1 µA
Current - Supply (Max) 160 µA
PSRR 65dB (1kHz)
Control Features Enable
Protection Features Over Current, Thermal Shutdown
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 6-SMD, Flat Lead Exposed Pad
Supplier Device Package 6-HSON (A) (2.9x2.8)
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1248239-S-1170B38PD-OTXTFG
Ultra Librarian 3D Model Ultra Librarian S-1170B38PD-OTXTFG CAD Model

Description

The S-1170 series voltage regulator from ABLIC Inc. is a positive fixed output voltage regulator that can operate with an input voltage of up to 6.5V.

  • Maximum Output Voltage: 3.8V
  • Output Current: Up to 800mA
  • Temperature Range: -40°C to 85°C
  • Package: 6-SMD, flat lead exposed pad
  • Protection Features: Over current and thermal shutdown
  • Current Quiescent: 1 µA
  • Voltage Dropout (max): 0.18V @ 300mA
  • Status: Now obsolete
