Same model may have multiple batches, images only for reference.

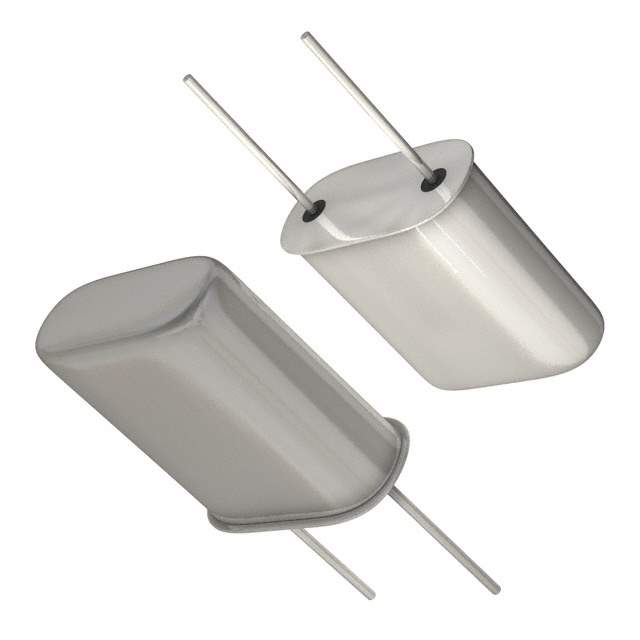

AB-3.579545MHZ-B2 Real Image
Same model may have multiple batches, images only for reference.

AB-3.579545MHZ-B2

Part No AB-3.579545MHZ-B2
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 3.579545MHZ 18PF TH / 3.579545 MHz ±20ppm Crystal 18pF 200 Ohms HC-49/U
Datasheet
AB-3.579545MHZ-B2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series AB
Package Tape & Reel (TR)
Type MHz Crystal
Frequency 3.579545 MHz
Frequency Stability ±100ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 200 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Through Hole
Package / Case HC-49/U
Dimension 0.453" L x 0.197" W (11.50mm x 5.00mm)
Height - Seated (Max) 0.530" (13.46mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0030
Other Names ,535-9019,535-AB-3.579545MHZ-B2TR,300-9019,300-9019-ND,535-9019-ND
Standard Package 1,000
Win Source Part Number 1046041-AB-3.579545MHZ-B2
Ultra Librarian 3D Model Ultra Librarian AB-3.579545MHZ-B2 CAD Model

Description

The AB series MHz crystal is a high-quality electronic component manufactured by Abracon LLC.

  • Mounting Type: Through Hole
  • Frequency: 3.579545 MHz
  • Load Capacitance: 18pF
  • Frequency Tolerance: ±20ppm
  • Frequency Stability: ±100ppm
  • Operating Mode: Fundamental
  • ESR: 200 Ohms
  • Packaging: Tape and Reel
  • Standard Package: 1,000
