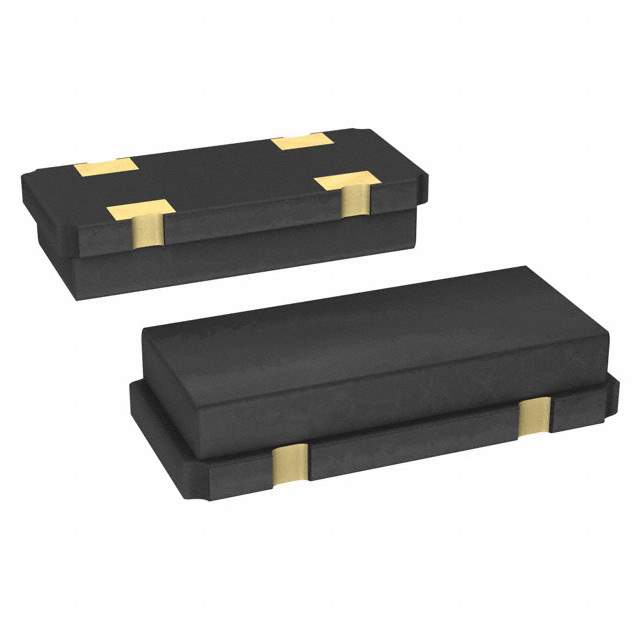

ABC2-3.6864MHZ-4-T Real Image
Same model may have multiple batches, images only for reference.

ABC2-3.6864MHZ-4-T

Part No ABC2-3.6864MHZ-4-T
Manufacturer Abracon LLC
Catalog Oscillators
Description CRYSTAL 3.6864MHZ 18PF SMD / 3.6864 MHz ±30ppm Crystal 18pF 140 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Manufacturer Abracon LLC
Packaging Reel - TR
Type MHz Crystal
Frequency 3.6864 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 140 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 60°C
Mounting Surface Mount
Case / Package 4-SMD, No Lead
Size / Dimension 0.465" L x 0.217" W (11.80mm x 5.50mm)
Height - Seated (Max) 0.079" (2.00mm)
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0030
Other Part Number ABC236864MHZ4T,535-11694-1,535-11694-6,535-11694-2,ABC2-3.6864MHZ-4-T-ND
Standard Package 1,000
Win Source Part Number 1328427-ABC2-3.6864MHZ-4-T
Ultra Librarian 3D Model Ultra Librarian ABC2-3.6864MHZ-4-T CAD Model

Description

The 3.6864 MHz Crystal from Abracon LLC is a surface mount MHz Crystal that measures 0.465 inches in length and 0.217 inches in width.

  • Frequency: 3.6864 MHz
  • Mounting: Surface Mount
  • Length: 0.465 inches
  • Width: 0.217 inches
  • ESR (Equivalent Series Resistance): 140 Ohms
  • Frequency Tolerance: ±30ppm
  • Mode: Fundamental
  • Load Capacitance: 18pF
  • Operating Temperature: -10°C to 60°C
  • Frequency Stability: ±50ppm
  • Package: 4-SMD, No Lead
  • ROHS3 Compliant: Yes
