Same model may have multiple batches, images only for reference.

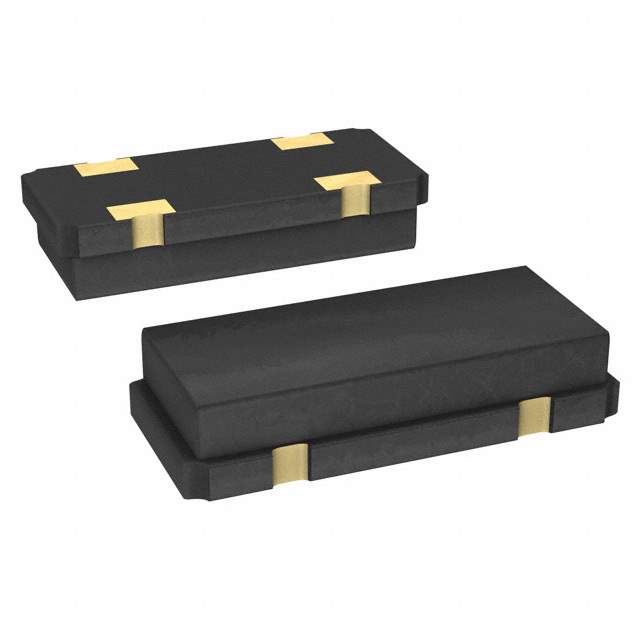

ABC2-8.000MHZ-4-T Real Image
Same model may have multiple batches, images only for reference.

ABC2-8.000MHZ-4-T

Part No ABC2-8.000MHZ-4-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 8.0000MHZ 18PF SMD / 8 MHz ±30ppm Crystal 18pF 45 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr Abracon LLC
Series ABC2
Package Tape & Reel
Type MHz Crystal
Frequency 8 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 45 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 60°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.465" L x 0.217" W (11.80mm x 5.50mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Win Source Part Number 1348704-ABC2-8.000MHZ-4-T
Ultra Librarian 3D Model Ultra Librarian ABC2-8.000MHZ-4-T CAD Model

Description

The 1348704-ABC2-8.000MHZ-4-T is a surface mount MHz crystal from Abracon LLC's ABC2 series.

  • Packaging: Tape and Reel
  • Size: 0.465" L x 0.217" W (11.80mm x 5.50mm)
  • Height: 0.079" (2.00mm)
  • Frequency: 8 MHz
  • ESR: 45 Ohms
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±30ppm
  • Mode: Fundamental
  • Load Capacitance: 18pF
  • Operating Temperature: -10°C to 60°C
  • REACH: Affected
  • HTSUS: 8541.60.0050
