Same model may have multiple batches, images only for reference.

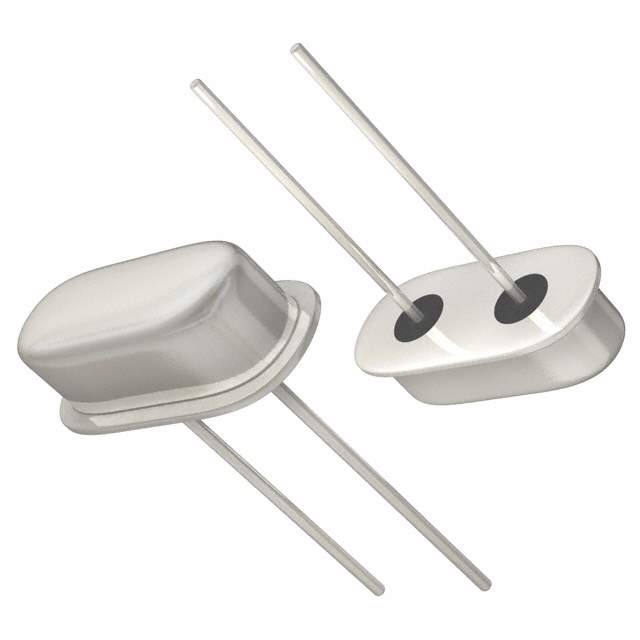

ABL-4.096MHZ-B2 Real Image
Same model may have multiple batches, images only for reference.

ABL-4.096MHZ-B2

Part No ABL-4.096MHZ-B2
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 4.0960MHZ 18PF TH / 4.096 MHz ±20ppm Crystal 18pF 180 Ohms HC-49/US
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABL
Package Bulk
Type MHz Crystal
Frequency 4.096 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 180 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Through Hole
Package / Case HC-49/US
Dimension 0.453" L x 0.197" W (11.50mm x 5.00mm)
Height - Seated (Max) 0.138" (3.50mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0030
Other Names 300-9058,300-9058-ND,535-9058
Standard Package 1,000
Win Source Part Number 1038497-ABL-4.096MHZ-B2
Ultra Librarian 3D Model Ultra Librarian ABL-4.096MHZ-B2 CAD Model

Description

The ABL series crystal from Abracon LLC is a high-quality MHz crystal oscillator that features a frequency of 4.096 MHz with a frequency tolerance of ±20ppm and a frequency stability of ±50ppm.

  • Frequency: 4.096 MHz
  • Frequency Tolerance: ±20ppm
  • Frequency Stability: ±50ppm
  • Load Capacitance: 18pF
  • Mounting Type: Through Hole
  • Package: HC-49/US
  • Operating Temperature: -20°C to 70°C
  • Packaging: Bulk
  • Popularity: Medium
  • Supply and Demand Status: Limited
