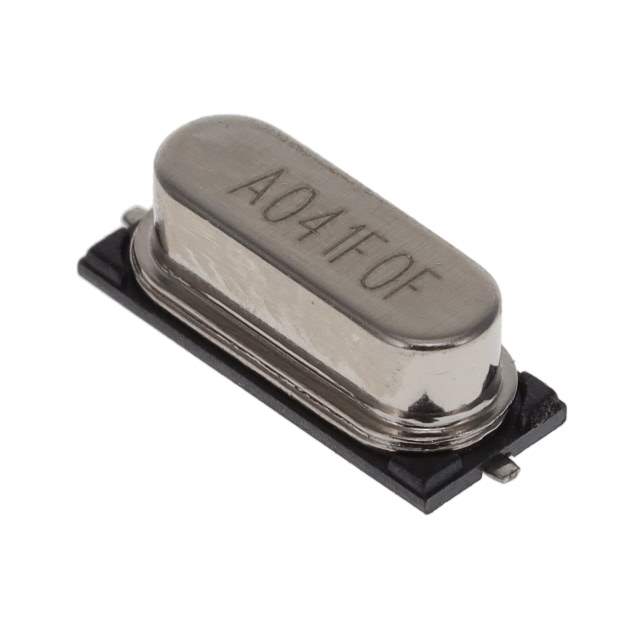

ABLS-4.194304MHZ-D-4-Y-T Real Image
Same model may have multiple batches, images only for reference.

ABLS-4.194304MHZ-D-4-Y-T

Part No ABLS-4.194304MHZ-D-4-Y-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 4.194304MHZ 18PF SMD / 4.194304 MHz ±30ppm Crystal 18pF 180 Ohms HC-49/US
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABLS
Package Tape & Reel
Type MHz Crystal
Frequency 4.194304 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 180 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case HC-49/US
Dimension 0.449" L x 0.185" W (11.40mm x 4.70mm)
Height - Seated (Max) 0.165" (4.20mm)
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0030
Other Names 535-14925-1,535-14925-2,535-14925-6
Standard Package 1,000
Win Source Part Number 1038498-ABLS-4.194304MHZ-D-4-Y-T
Ultra Librarian 3D Model Ultra Librarian ABLS-4.194304MHZ-D-4-Y-T CAD Model

Description

The ABLS-4.194304MHZ-D-4-Y-T is a crystal oscillator component manufactured by Abracon LLC.

  • Series: ABLS
  • Crystal Type: MHz crystal
  • Package: tape and reel
  • Height-Seated (Max): 0.165" (4.20mm)
  • Standard Package: 1,000
  • Mounting: SMD (SMT)
  • Frequency: 4.194304 MHz
  • ESR (Equivalent Series Resistance): 180 Ohms
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Operating Mode: fundamental
  • Package/Case: HC-49/US
  • Temperature Range: -40°C ~ 85°C
