Same model may have multiple batches, images only for reference.

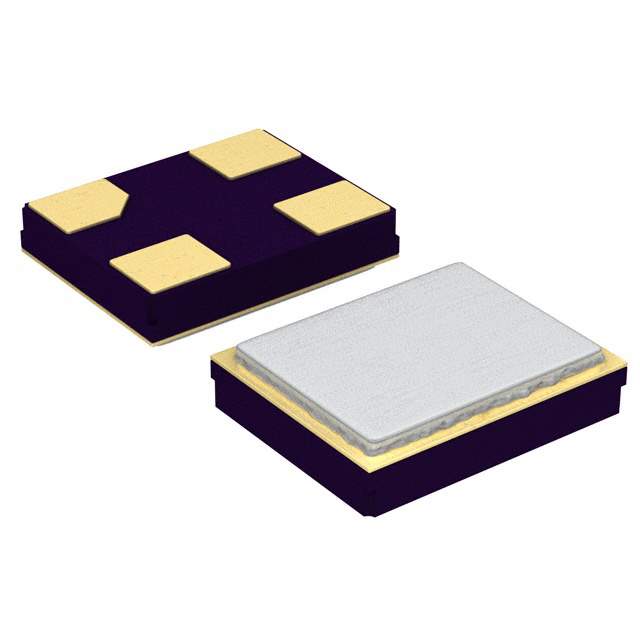

ABM11-16.000MHZ-D2X-T3 Real Image
Same model may have multiple batches, images only for reference.

ABM11-16.000MHZ-D2X-T3

Part No ABM11-16.000MHZ-D2X-T3
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 16.0000MHZ 10PF SMD / 16 MHz ±20ppm Crystal 10pF 150 Ohms 4-SMD, No Lead
Datasheet
ABM11-16.000MHZ-D2X-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM11
Package Tape & Reel
Type MHz Crystal
Frequency 16 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±20ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 150 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.023" (0.59mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 535-12629-6,535-12629-1,535-12629-2
Standard Package 3,000
Win Source Part Number 1158031-ABM11-16.000MHZ-D2X-T3
Ultra Librarian 3D Model Ultra Librarian ABM11-16.000MHZ-D2X-T3 CAD Model

Description

The 1158031-ABM11-16.000MHZ-D2X-T3 is a type of MHz crystal designed for use in various electronic devices from Abracon LLC.

  • Packaging: Tape and Reel
  • Height: 0.023" (0.59mm)
  • Standard Package: 3,000
  • Mounting: SMD (SMT)
  • Frequency: 16 MHz
  • ESR: 150 Ohms
  • Frequency Stability: ±20ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 10pF
  • Operating Mode: Fundamental
  • Package/Case: 4-SMD, no lead
  • Temperature Range: -40°C to 85°C
  • Dimension: 0.079" L x 0.063" W (2.00mm x 1.60mm)
