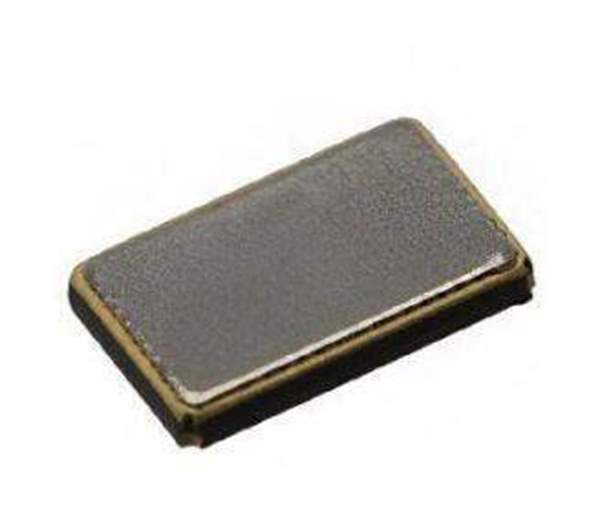

CX3225SA27000D0PZZ06 KYOCERA AVX
Same model may have multiple batches, images only for reference.

CX3225SA27000D0PZZ06

Part No CX3225SA27000D0PZZ06
Manufacturer AVX Corp/Kyocera Corp
Catalog Crystals
Description Crystals 27000kHz 8pF AEC-Q20 0
Datasheet
CX3225SA27000D0PZZ06 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer KYOCERA AVX
Category Crystals
Frequency 27 MHz
Load Capacitance 8 pF
Tolerance 50 PPM
Frequency Stability 200 PPM
Package / Case 3.2 mm x 2.5 mm
Minimum Operating Temperature - 40 C
Maximum Operating Temperature + 150 C
Termination Style SMD/SMT
Ultra Librarian 3D Model Ultra Librarian CX3225SA27000D0PZZ06 CAD Model

Description

The CX3225SA27000D0PZZ06 is a 27.000 MHz surface-mount crystal unit from Kyocera AVX’s CX3225SA series, designed for automotive-grade applications. Featuring a compact 3.2 × 2.5 mm package, it ensures excellent frequency stability and shock resistance. The crystal offers improved mounting reliability with a four-terminal design and ground connection, ensuring minimal noise and stable oscillation characteristics. Qualified to AEC-Q200 and RoHS compliant, it is ideal for ECUs, TPMS, and high-speed automotive communication systems.
