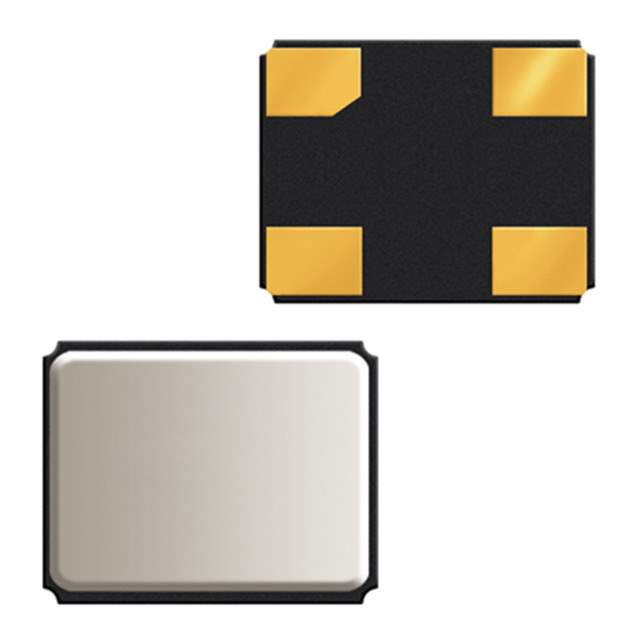

ABM11W-28.2240MHZ-7-B2U-T3 Real Image
Same model may have multiple batches, images only for reference.

ABM11W-28.2240MHZ-7-B2U-T3

Part No ABM11W-28.2240MHZ-7-B2U-T3
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 28.2240MHZ 7PF SMD / 28.224 MHz ±20ppm Crystal 7pF 50 Ohms 4-SMD, No Lead
Datasheet
ABM11W-28.2240MHZ-7-B2U-T3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM11W
Package Tape & Reel (TR)
Type MHz Crystal
Frequency 28.224 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±20ppm
Load Capacitance 7pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.020" (0.50mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Standard Package 3,000
Win Source Part Number 1036271-ABM11W-28.2240MHZ-7-B2U-T3
Ultra Librarian 3D Model Ultra Librarian ABM11W-28.2240MHZ-7-B2U-T3 CAD Model

Description

This is a MHz Crystal belonging to the ABM11W series manufactured by Abracon LLC. The Win Source Part Number for this component is 1036271-ABM11W-28.2240MHZ-7-B2U-T3.

  • Mounting Type: surface-mount device
  • Package: Tape & Reel (TR)
  • Height: 0.020" (0.50mm)
  • Standard Package: 3,000 pieces
  • Mounting: SMD (SMT)
  • Frequency: 28.224 MHz
  • ESR (Equivalent Series Resistance): 50 Ohms
  • Frequency Stability: ±10ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 7pF
  • Operating Mode: fundamental
  • Package/Case: 4-SMD, No Lead
  • Temperature Range: -20°C ~ 70°C
  • Dimension: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • ECCN: EAR99
  • MSL Level: Not Applicable
  • REACH Status: REACH Unaffected
  • HTSUS: 8541.60.0060
