Same model may have multiple batches, images only for reference.

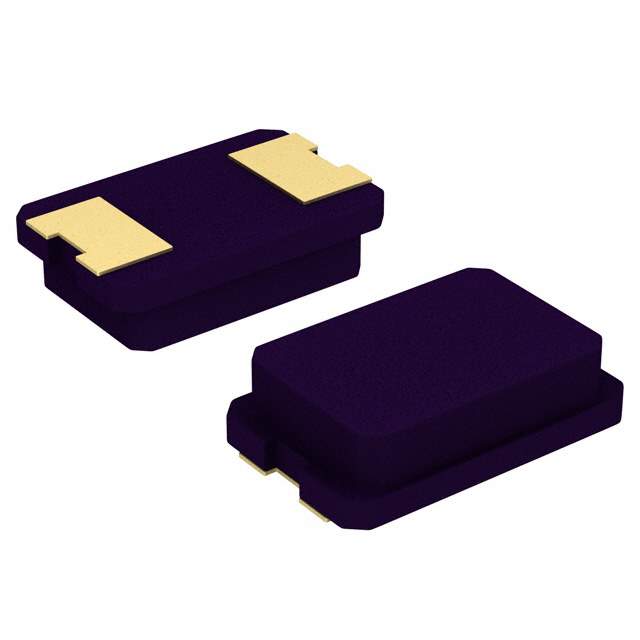

ABM3-14.31818MHZ-B2-T Real Image
Same model may have multiple batches, images only for reference.

ABM3-14.31818MHZ-B2-T

Part No ABM3-14.31818MHZ-B2-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 14.31818MHZ 18PF SMD / 14.31818 MHz ±20ppm Crystal 18pF 60 Ohms 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM3
Package Tape & Reel
Type MHz Crystal
Frequency 14.31818 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±20ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.051" (1.30mm)
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0050
Other Names 300-9102-2-ND,535-9102-6,300-9102-1-ND,ABM31431818MHZB2T,300-9102-1,300-9102-2,535-9102-1,535-9102-2
Standard Package 1,000
Win Source Part Number 1034760-ABM3-14.31818MHZ-B2-T
Ultra Librarian 3D Model Ultra Librarian ABM3-14.31818MHZ-B2-T CAD Model

Description

This electronic component is a crystal manufactured by Abracon LLC and has a frequency of 14.31818 MHz.

  • Frequency: 14.31818 MHz
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±20ppm
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Package / Case: 2-SMD, no lead
  • Temperature Range - Operating: -20°C ~ 70°C
  • Alternative Parts (cross-reference): ABLS-14.31818MHZ-B2-T, ABMM-14.31818MHZ-B2-T, ABM3B-14.31818MHZ-B2-T, and 445C25D14M31818
