Same model may have multiple batches, images only for reference.

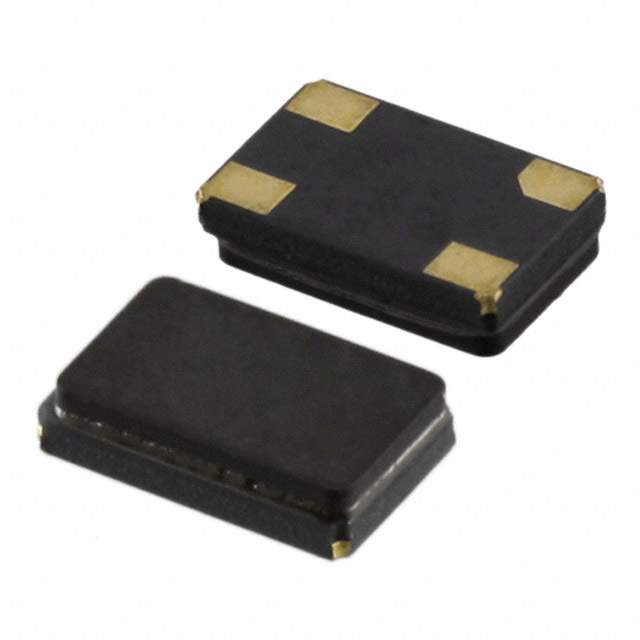

ABM3C-24.000MHZ-D4Y-T Real Image
Same model may have multiple batches, images only for reference.

ABM3C-24.000MHZ-D4Y-T

Part No ABM3C-24.000MHZ-D4Y-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 24.0000MHZ 18PF SMD / 24 MHz ±30ppm Crystal 18pF 50 Ohms 4-SMD, No Lead
Datasheet
ABM3C-24.000MHZ-D4Y-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABM3C
Package Tape & Reel
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.051" (1.30mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.60.0060
Other Names 535-11294-6,ABM3C24000MHZD4YT,535-11294-2,535-11294-1
Standard Package 1,000
Win Source Part Number 1180086-ABM3C-24.000MHZ-D4Y-T
Ultra Librarian 3D Model Ultra Librarian ABM3C-24.000MHZ-D4Y-T CAD Model

Description

The Abracon LLC crystal with a win source part number of 1180086-ABM3C-24.000MHZ-D4Y-T belongs to the ABM3C series and has a MHz crystal type.

  • Manufacturer: Abracon LLC
  • Win Source Part Number: 1180086-ABM3C-24.000MHZ-D4Y-T
  • Series: ABM3C
  • Crystal Type: MHz Crystal
  • Package: Tape and Reel
  • Standard Package: 1,000
  • Mounting Technology: SMD (SMT)
  • Frequency: 24 MHz
  • ESR: 50 Ohms
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Operating Temperature: -40°C ~ 85°C
  • Popularity: Low
