Same model may have multiple batches, images only for reference.

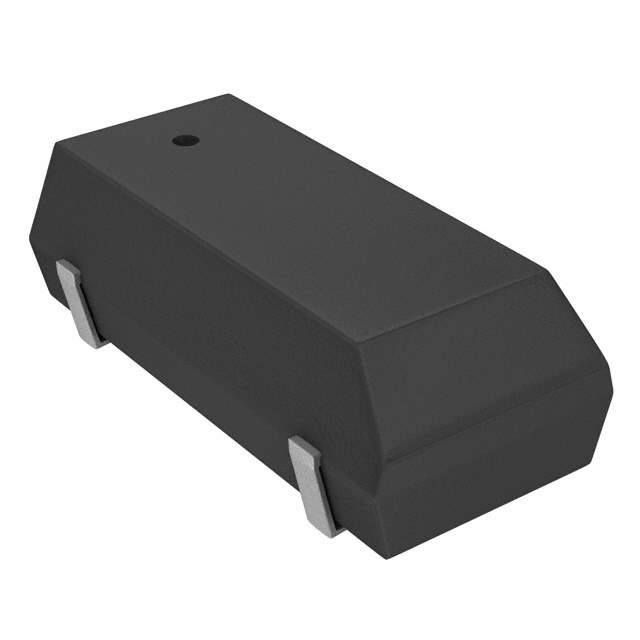

ABS25-32.768KHZ-4-T Real Image
Same model may have multiple batches, images only for reference.

ABS25-32.768KHZ-4-T

Part No ABS25-32.768KHZ-4-T
Manufacturer Abracon LLC
Catalog Crystals
Description CRYSTAL 32.7680KHZ 12.5PF SMD / 32.768 kHz ±30ppm Crystal 12.5pF 50 kOhms 4-SOJ, 5.50mm pitch
Datasheet
ABS25-32.768KHZ-4-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Abracon LLC
Series ABS25
Package Tape & Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±30ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 50 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SOJ, 5.50mm pitch
Dimension 0.315" L x 0.150" W (8.00mm x 3.80mm)
Height - Seated (Max) 0.098" (2.50mm)
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.60.0010
Other Names 535-13425-2,535-13425-1,ABS25-32.768KHZ-4-T-ND,535-13425-6
Standard Package 3,000
Win Source Part Number 998671-ABS25-32.768KHZ-4-T
Ultra Librarian 3D Model Ultra Librarian ABS25-32.768KHZ-4-T CAD Model

Description

The ABS25-32.768KHZ-4-T from Abracon LLC is a kHz crystal (tuning fork) electronic component that is designed for use in various electronic applications.

  • Frequency: 32.768 kHz
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 12.5pF
  • Mounting Type: SMD
  • Series: ABS25
  • REACH Compliant: Yes
