ACA-102-T

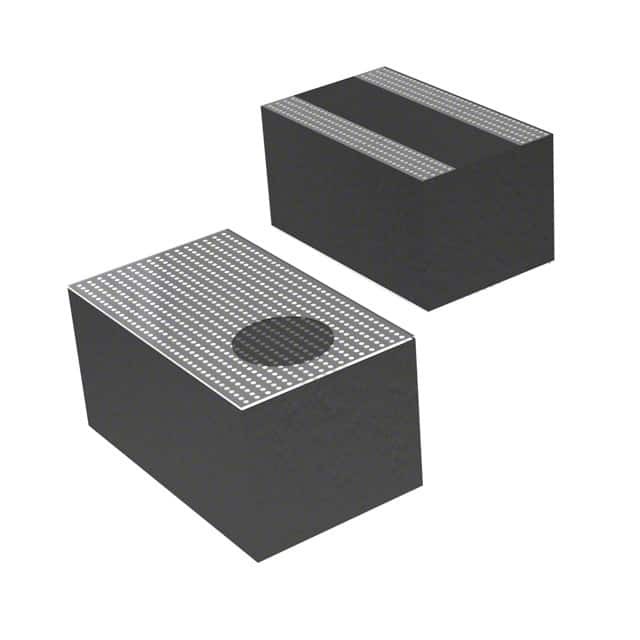

Same model may have multiple batches, images only for reference.

ACA-102-T

Part No ACA-102-T
Manufacturer Abracon LLC
Catalog RF Antennas
Description RF ANT 2.4GHZ CHIP SOLDER SMD / 2.4GHz Bluetooth, WLAN Chip RF Antenna 2.4GHz ~ 2.485GHz 0.6dBi Solder Surface Mount
Datasheet
ACA-102-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Abracon LLC
Package Tape & Reel
Product Status Obsolete
RF Family/Standard Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz)
Frequency (Center/Band) 2.4GHz
Frequency Range 2.4GHz ~ 2.485GHz
Antenna Type Chip
Number of Bands 1
VSWR 2.6
Gain 0.6dBi
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.039" (1.00mm)
Applications Bluetooth, WLAN
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.4040
Win Source Part Number 909183-ACA-102-T
Ultra Librarian 3D Model Ultra Librarian ACA-102-T CAD Model

Description

The RF Antenna with the Win Source Part Number 909183-ACA-102-T is a high-performance chip antenna designed for wireless communication applications.

  • Frequency Range: 2.4GHz to 2.485GHz
  • Applications: Bluetooth and WLAN
  • VSWR: 2.6
  • Gain: 0.6dBi
  • Mounting: Surface Mountable
  • Height: 0.039" (1.00mm)
  • Termination: Solder
  • Packaging: Tape & Reel
  • Standard Package Size: 1,000 pcs
  • Frequency Group: UHF
  • RF Standards: Bluetooth and WiFi
  • Manufacturer: Abracon LLC
  • Product Status: Obsolete
