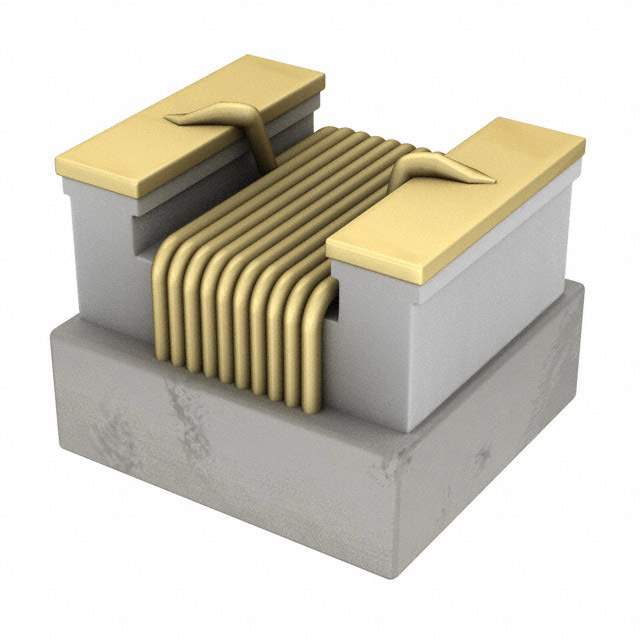

Same model may have multiple batches, images only for reference.

AISC-1008-4R7J-T

Name: AISC-1008-4R7J-T
Brand: Abracon LLC
SKU: 1168494
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	AISC-1008-4R7J-T
Manufacturer	Abracon LLC
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 260MA 4 OHM SMD / 4.7 µH Unshielded Drum Core, Wirewound Inductor 260 mA 4Ohm Max 1008 (2520 Metric)
Datasheet	AISC-1008-4R7J-T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Abracon LLC
Series	AISC-1008
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	4.7 µH
Tolerance	±5%
Current Rating (Amps)	260 mA
Shielding	Unshielded
DC Resistance (DCR)	4Ohm Max
Q @ Freq	20 @ 25MHz
Frequency - Self Resonant	50MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	7.9 MHz
Mounting	SMD (SMT)
Package / Case	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)
Dimension	0.115" L x 0.110" W (2.92mm x 2.79mm)
Height - Seated (Max)	0.090" (2.29mm)
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Names	535-10562-1,535-10562-2,535-10562-6,AISC10084R7JT
Standard Package	2,000
Win Source Part Number	1168494-AISC-1008-4R7J-T
Ultra Librarian 3D Model	Ultra Librarian AISC-1008-4R7J-T CAD Model

Alternative Products

Description

The AISC-1008-4R7J-T is a drum core, wirewound type inductor with unshielded shielding.

Type: Drum Core, Wirewound
Shielding: Unshielded
Core Material: Ceramic
Inductance: 4.7 µH
Mounting Type: SMD (SMT)
Height (Seated): 0.090" (2.29mm)
Tolerance: ±5%
Q @ Freq: 20 @ 25MHz
Frequency - Self-Resonant: 50MHz
DC Resistance (DCR): 4Ohm Max
Current Rating (Amps): 260 mA
Package/Case: 1008 (2520 Metric)
Standard Package: 2,000
Temperature Range: -40°C ~ 125°C
REACH: Unaffected
Dimension: 0.115" L x 0.110" W (2.92mm x 2.79mm)
MSL Level: 1 (Unlimited)
Supplier Device Package: 1008 (2520 Metric)
HTSUS: 8504.50.8000
