Same model may have multiple batches, images only for reference.

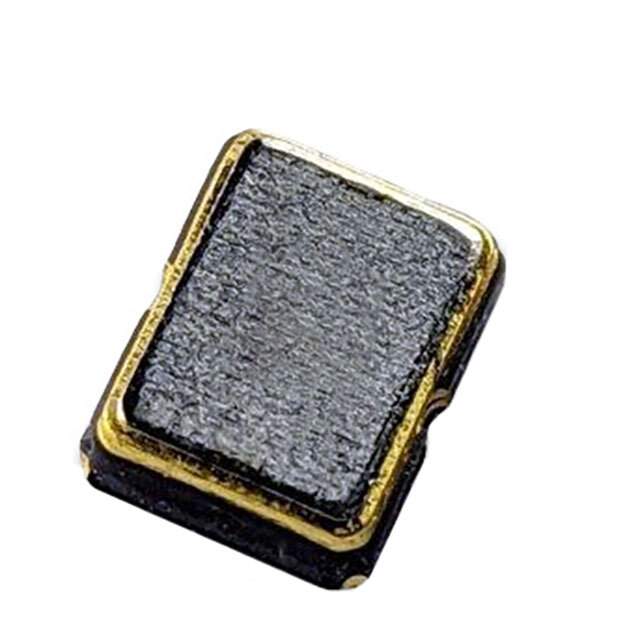

AK2DAF1-125.0000T3 Real Image
Same model may have multiple batches, images only for reference.

AK2DAF1-125.0000T3

Part No AK2DAF1-125.0000T3
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 125MHZ 3.3V LVDS / 125 MHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ClearClock™ AK2
Package Tape & Reel
Base Resonator Crystal
Type XO (Standard)
Frequency 125 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 3.3V
Frequency Stability ±30ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 15mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.043" (1.10mm)
Current - Supply (Disable) (Max) 10µA
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1341298-AK2DAF1-125.0000T3
Ultra Librarian 3D Model Ultra Librarian AK2DAF1-125.0000T3 CAD Model

Description

The ClearClock™ AK2 series is a Pure Silicon™ XO (Standard) oscillator, offered by Abracon LLC. It is designed to operate at a frequency of 125 MHz with a frequency stability of ±30 ppm and a current supply of 15 mA (maximum).

  • Output: LVDS
  • Package: 6-SMD, No Lead
  • Height when seated: 0.043 inches (1.10 mm)
  • Size/Dimension: 0.098 inches L x 0.079 inches W (2.50 mm x 2.00 mm)
  • Voltage Supply: 3.3V
  • Temperature Range: -40°C to 85°C
  • Application: enable/disable
