Same model may have multiple batches, images only for reference.

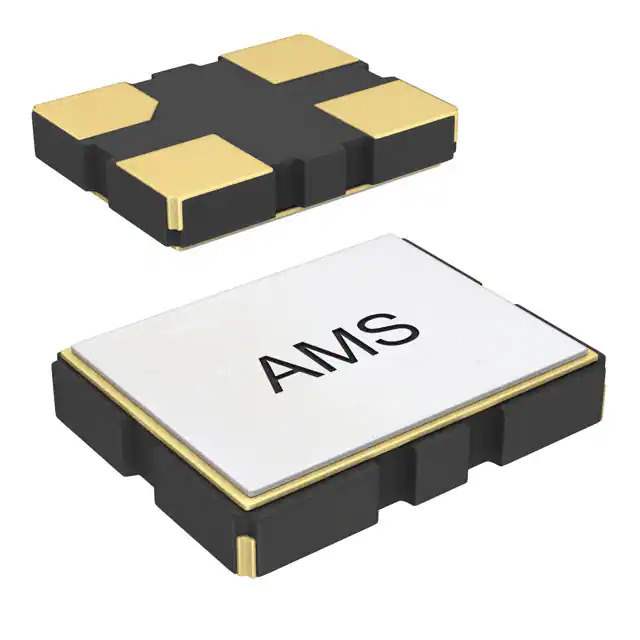

ASE-40.000MHZ-L-C-T Real Image
Same model may have multiple batches, images only for reference.

ASE-40.000MHZ-L-C-T

Part No ASE-40.000MHZ-L-C-T
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC XO 40.0000MHZ CMOS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Abracon LLC
Series ASE
Package Tape & Reel
Product Status Active
Base Resonator Crystal
Type XO (Standard)
Frequency 40 MHz
Function Enable/Disable
Output CMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 13mA
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.047" (1.20mm)
Current - Supply (Disable) (Max) 10µA
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 852941-ASE-40.000MHZ-L-C-T
Ultra Librarian 3D Model Ultra Librarian ASE-40.000MHZ-L-C-T CAD Model

Description

The Abracon LLC 852941-ASE-40.000MHZ-L-C-T is a surface mount XO (Standard) oscillator.

  • Oscillator Type: XO (Standard)
  • Series: ASE
  • Package: Tape & Reel
  • Size/Dimension: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Height: 0.047" (1.20mm)
  • Standard Package: 1,000 pieces
  • Frequency: 40 MHz
  • Frequency Stability: ±50ppm
  • Function: Enable/Disable
  • Output: CMOS
  • Current Supply: 13mA (maximum)
  • Voltage Supply: 3.3V
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: Abracon LLC
  • Product Status: Active
