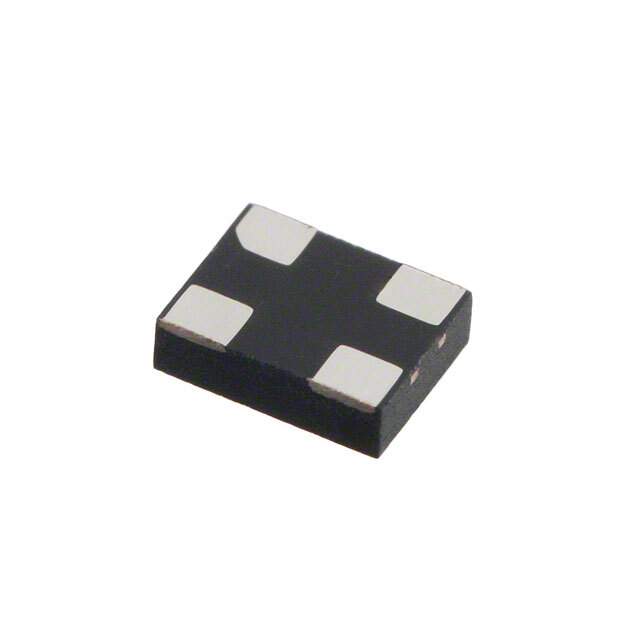

ASEMB-20.000MHZ-XY-T Real Image
Same model may have multiple batches, images only for reference.

ASEMB-20.000MHZ-XY-T

Part No ASEMB-20.000MHZ-XY-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 20.0000MHZ CMOS SMD / 20 MHz XO (Standard) CMOS Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-SMD, No Lead
Datasheet
ASEMB-20.000MHZ-XY-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASEMB, Pure Silicon™
Package Tape & Reel
Base Resonator MEMS
Type XO (Standard)
Frequency 20 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.8V ~ 3.3V
Frequency Stability ±10ppm
Temperature Range - Operating -40°C ~ 105°C
Current - Supply (Max) 16mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 15µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 535-11122-2,ASEMB20000MHZXYT,535-11122-6,535-11122-1
Standard Package 1,000
Win Source Part Number 1171788-ASEMB-20.000MHZ-XY-T
Ultra Librarian 3D Model Ultra Librarian ASEMB-20.000MHZ-XY-T CAD Model

Description

The Abracon LLC ASEMB-20.000MHZ-XY-T is a Pure Silicon™ XO oscillator with a frequency of 20 MHz and a frequency stability of ±10ppm. ASEMB-20.000MHZ-XY-T is manufactured by Abracon LLC.

  • Oscillator Type: Pure Silicon™ XO
  • Frequency: 20 MHz
  • Frequency Stability: ±10ppm
  • Current Supply: 16mA
  • Current Supply (Disable): 15µA
  • Voltage Supply: 1.8V and 3.3V
  • Package: Tape and Reel
  • Height: 0.035" (0.90mm)
  • MSL Level: 1 (unlimited)
  • HTSUS Code: 8542.39.0001
