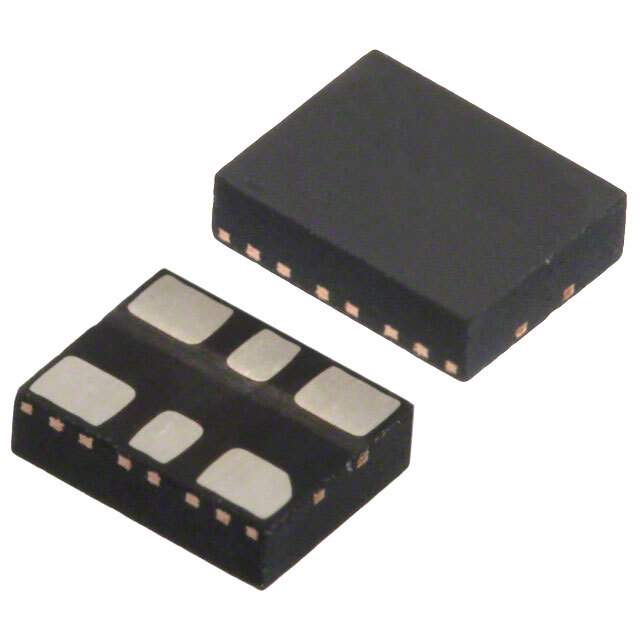

ASEMPLV-156.250MHZ-LR-T Real Image1 ASEMPLV-156.250MHZ-LR-T Real Image2
Same model may have multiple batches, images only for reference.
ASEMPLV-156.250MHZ-LR-T Real Image1 ASEMPLV-156.250MHZ-LR-T Real Image2
ASEMPLV-156.250MHZ-LR-T Real Image1 ASEMPLV-156.250MHZ-LR-T Real Image2
Same model may have multiple batches, images only for reference.

ASEMPLV-156.250MHZ-LR-T

Part No ASEMPLV-156.250MHZ-LR-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 156.2500MHZ LVDS SMD / 156.25 MHz XO (Standard) LVDS Oscillator 2.25V ~ 3.6V Enable/Disable 6-SMD, No Lead
Datasheet
ASEMPLV-156.250MHZ-LR-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASEMP, Pure Silicon™
Package Tape & Reel
Base Resonator MEMS
Type XO (Standard)
Frequency 156.25 MHz
Function Enable/Disable
Output LVDS
Voltage - Supply 2.25V ~ 3.6V
Frequency Stability ±25ppm
Absolute Pull Range (APR) -
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 35mA
Ratings -
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 26mA
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1,000 pcs
Win Source Part Number 1381456-ASEMPLV-156.250MHZ-LR-T
Ultra Librarian 3D Model Ultra Librarian ASEMPLV-156.250MHZ-LR-T CAD Model

Description

The ASEMP, Pure Silicon™ series is a standard XO oscillator designed for frequency generation in electronic circuits. ASEMP, Pure Silicon™.

  • Frequency: 156.25MHz
  • Frequency Stability: ±25ppm
  • Size: 0.126" L x 0.098" W (3.20mm x 2.50mm)
  • Height: 0.035" (0.90mm)
  • Supply Voltage: 2.25V to 3.6V
  • Supply Current (Max): 35mA
  • Mounting Type: Surface Mount
  • Package: 6-SMD, no lead
