Same model may have multiple batches, images only for reference.

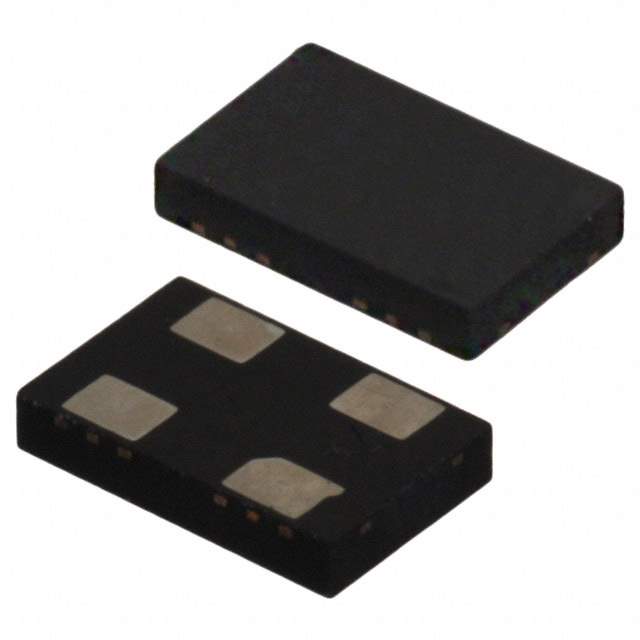

ASFLMB-100.000MHZ-LR-T Real Image
Same model may have multiple batches, images only for reference.

ASFLMB-100.000MHZ-LR-T

Part No ASFLMB-100.000MHZ-LR-T
Manufacturer Abracon LLC
Catalog Oscillators
Description MEMS OSC XO 100.0000MHZ LVCMOS / 100 MHz XO (Standard) LVCMOS Oscillator 1.8V ~ 3.3V Standby (Power Down) 4-SMD, No Lead
Datasheet
ASFLMB-100.000MHZ-LR-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASFLMB, Pure Silicon™
Package Tape & Reel
Base Resonator MEMS
Type XO (Standard)
Frequency 100 MHz
Function Standby (Power Down)
Output LVCMOS
Voltage - Supply 1.8V ~ 3.3V
Frequency Stability ±25ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 16mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.035" (0.90mm)
Current - Supply (Disable) (Max) 15µA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 535-11074-6,535-11074-2,535-11074-1,ASFLMB100000MHZLRT
Standard Package 1,000
Win Source Part Number 1229929-ASFLMB-100.000MHZ-LR-T
Ultra Librarian 3D Model Ultra Librarian ASFLMB-100.000MHZ-LR-T CAD Model

Description

The ASFLMB-100.000MHZ-LR-T is a crystal oscillator manufactured by Abracon LLC.

  • Series: ASFLMB, Pure Silicon™
  • Oscillator Type: Standard XO
  • Frequency: 100MHz
  • Frequency Stability: ±25ppm
  • Voltage Supply: 1.8V to 3.3V
  • Current Supply: 16mA (max)
  • Current Supply (Disable): 15μA (max)
  • Package: 4-SMD, No Lead
  • Dimension: 0.197in L x 0.126in W (5.00mm x 3.20mm)
  • Height-Seated (Max): 0.035in (0.90mm)
  • Mounting Type: Surface Mount
  • Category: Crystals, Oscillators, Resonators
  • Application: Standby (Power Down)
