Same model may have multiple batches, images only for reference.

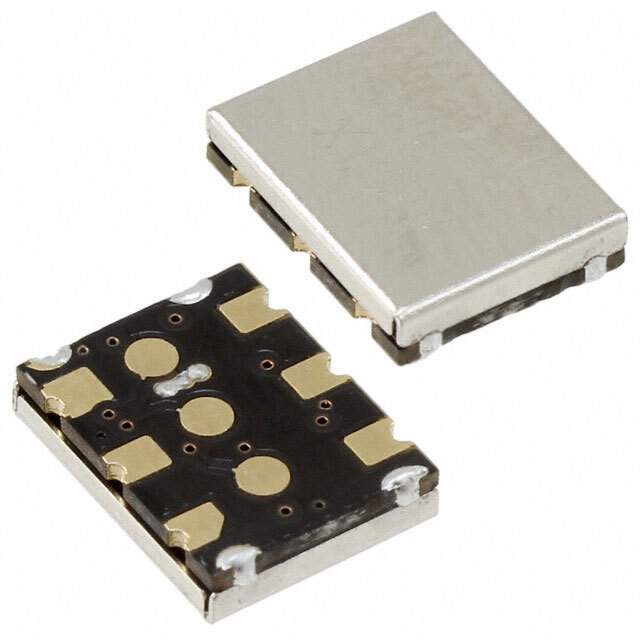

ASGTX-C-20.000MHZ-2 Real Image
Same model may have multiple batches, images only for reference.

ASGTX-C-20.000MHZ-2

Part No ASGTX-C-20.000MHZ-2
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC VCTCXO 20.0000MHZ LVCMO / 20 MHz VCTCXO LVCMOS Oscillator 3.135V ~ 3.465V 6-SMD, No Lead
Datasheet
ASGTX-C-20.000MHZ-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series ASGTX
Package Bulk
Base Resonator Crystal
Type VCTCXO
Frequency 20 MHz
Output LVCMOS
Voltage - Supply 3.135V ~ 3.465V
Frequency Stability ±2ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 45mA
Mounting SMD (SMT)
Package / Case 6-SMD, No Lead
Dimension 0.354" L x 0.276" W (9.00mm x 7.00mm)
Height - Seated (Max) 0.088" (2.24mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1
Win Source Part Number 1214857-ASGTX-C-20.000MHZ-2
Ultra Librarian 3D Model Ultra Librarian ASGTX-C-20.000MHZ-2 CAD Model

Description

The ASGTX series VCTCXO oscillator is a high-performance electronic component designed for use in various applications.

  • Frequency: 20 MHz
  • Frequency Stability: ±2ppm
  • Current Supply: Up to 45mA
  • Package: 6-SMD, no lead
  • Dimension: 0.354" L x 0.276" W (9.00mm x 7.00mm)
  • Operating Temperature Range: -40°C to 85°C
  • Voltage Supply: 3.135V ~ 3.465V
