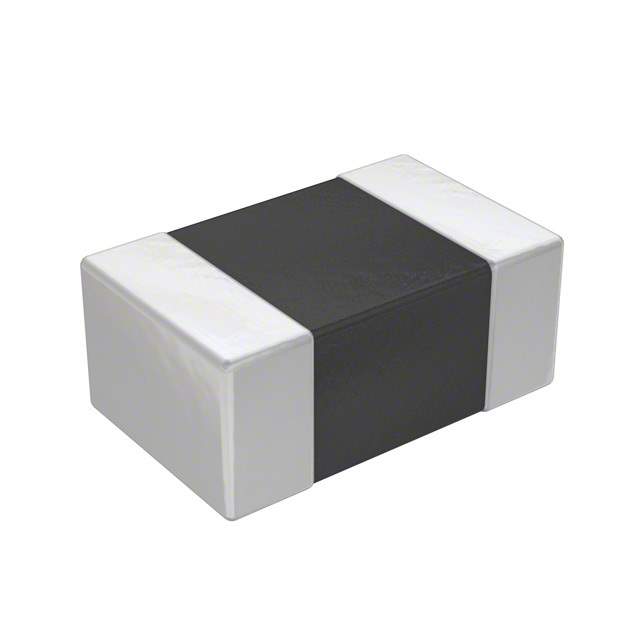

ASMPH-0805-1R0M-T Real Image
Same model may have multiple batches, images only for reference.

ASMPH-0805-1R0M-T

Part No ASMPH-0805-1R0M-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 1UH 1.3A 110 MOHM SMD / 1 µH Shielded Multilayer Inductor 1.3 A 110mOhm 0805 (2012 Metric)
Datasheet
ASMPH-0805-1R0M-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Abracon LLC
Series ASMPH-0805
Package Tape & Reel
Type Multilayer
Material - Core Ferrite
Inductance 1 µH
Tolerance ±20%
Current Rating (Amps) 1.3 A
Current - Saturation (Isat) 1.15A
Shielding Shielded
DC Resistance (DCR) 110mOhm
Frequency - Self Resonant 60MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 1 MHz
Mounting Type Surface Mount
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805 (2012 Metric)
Size / Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.039" (1.00mm)
Standard Package 3,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1337695-ASMPH-0805-1R0M-T
Ultra Librarian 3D Model Ultra Librarian ASMPH-0805-1R0M-T CAD Model

Description

The ASMPH-0805 series fixed inductor is a high-quality electronic component manufactured by Abracon LLC.

  • Type: Multilayer
  • Package: Tape & Reel
  • Package Size: 0.079" L x 0.049" W (2.00mm x 1.25mm)
  • Height: 0.039" (1.00mm)
  • Shielding: Shielded
  • Package/Case: 0805 (2012 Metric)
  • Inductance: 1 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 110mOhm
  • Current Rating: 1.3 A
  • Frequency Test: 1 MHz
  • Temperature Range: -40°C to 85°C
  • REACH: Unaffected
