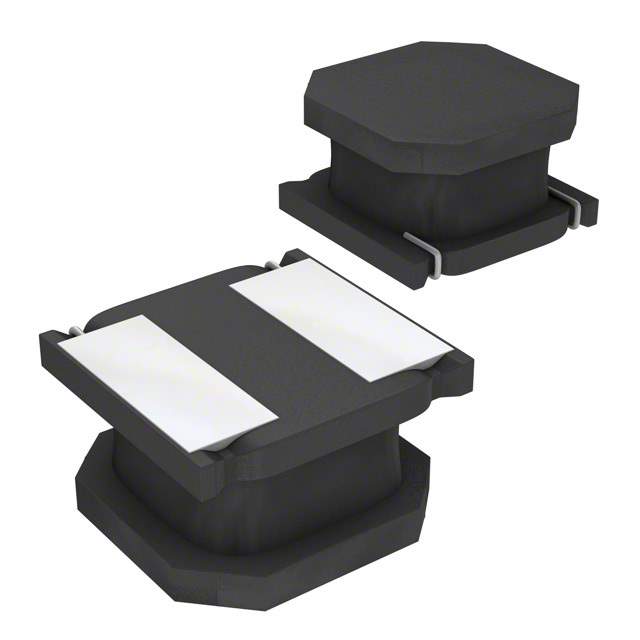

ASPI-2012-150M-T Real Image
Same model may have multiple batches, images only for reference.

ASPI-2012-150M-T

Part No ASPI-2012-150M-T
Manufacturer Abracon LLC
Catalog Fixed Inductors
Description FIXED IND 15UH 380MA 1.368OHM SM / 15 µH Shielded Drum Core, Wirewound Inductor 380 mA 1.368Ohm Max Nonstandard
Datasheet
ASPI-2012-150M-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Abracon LLC
Series ASPI-2012
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 15 µH
Tolerance ±20%
Current Rating (Amps) 380 mA
Current - Saturation (Isat) 550mA
Shielding Shielded
DC Resistance (DCR) 1.368Ohm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 1 MHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.079" L x 0.079" W (2.00mm x 2.00mm)
Height - Seated (Max) 0.047" (1.20mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Names 535-15233-6,535-15233-2,535-15233-1
Standard Package 2,000
Win Source Part Number 1117571-ASPI-2012-150M-T
Ultra Librarian 3D Model Ultra Librarian ASPI-2012-150M-T CAD Model

Description

The ASPI-2012-150M-T is a drum core, wirewound inductor from Abracon LLC. It is shielded and has an inductance of 15 µH with a tolerance of ±20%. The inductor has a DC resistance of 1.368Ohm Max and a current rating of 380 mA. It has a ferrite core material and a maximum seated height of 0.047" (1.20mm). The ASPI-2012-150M-T is packaged in tape & reel and is SMD (SMT) mountable. It is suitable for use in a temperature range of -40°C to 125°C. This inductor is ideal for use in applications such as power supplies, noise filters, and DC-DC converters.
