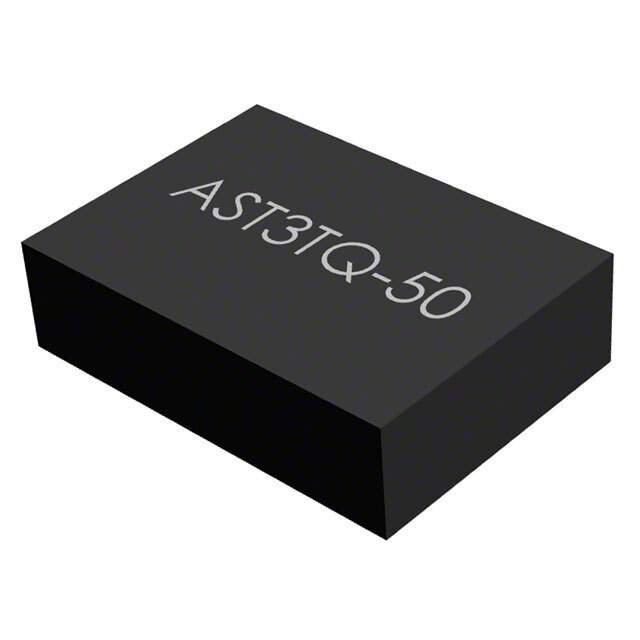

AST3TQ-T-10.000MHZ-50-C

Part No AST3TQ-T-10.000MHZ-50-C
Manufacturer Abracon LLC
Catalog Oscillators
Description XTAL OSC TCXO 10.0000MHZ LVCMOS / 10 MHz TCXO LVCMOS Oscillator 3.3V 4-SMD, No Lead
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Abracon LLC
Series AST3TQ-50
Package Strip
Base Resonator Crystal
Type TCXO
Frequency 10 MHz
Output LVCMOS
Voltage - Supply 3.3V
Frequency Stability ±50ppb
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 7mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.079" (2.00mm)
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names 535-12954
Standard Package 25
Win Source Part Number 1086592-AST3TQ-T-10.000MHZ-50-C
Ultra Librarian 3D Model Ultra Librarian AST3TQ-T-10.000MHZ-50-C CAD Model

Description

The AST3TQ-T-10.000MHZ-50-C is an oscillator with a TCXO type.

  • Output: LVCMOS
  • Frequency: 10 MHz
  • Frequency Stability: ±50ppb
  • Voltage Supply: 3.3V
  • Current Rating (Max): 7mA
  • Package/Case: 4-SMD, No Lead
  • Temperature Range: -40°C ~ 85°C
