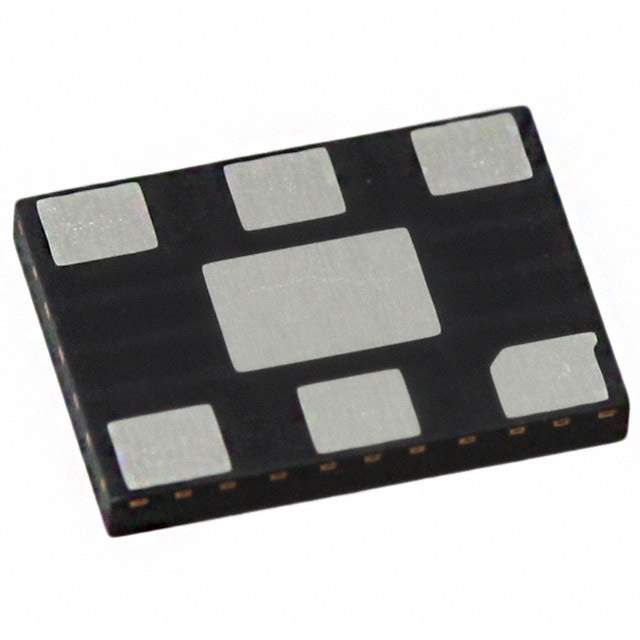

Same model may have multiple batches, images only for reference.

ASVMPC-26.000MHZ-Z-T

Name: ASVMPC-26.000MHZ-Z-T
Brand: Abracon LLC
SKU: 1340414
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	ASVMPC-26.000MHZ-Z-T
Manufacturer	Abracon LLC
Catalog	Oscillators
Description	MEMS OSC XO 26.0000MHZ CMOS SMD / 26 MHz XO (Standard) CMOS Oscillator 2.25V ~ 3.6V Enable/Disable 6-SMD, No Lead Exposed Pad
Datasheet	ASVMPC-26.000MHZ-Z-T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Crystals, Oscillators, Resonators - Oscillators
Mfr	Abracon LLC
Series	ASVMP, Pure Silicon™
Package	Tape & Reel
Base Resonator	MEMS
Type	XO (Standard)
Frequency	26 MHz
Function	Enable/Disable
Output	CMOS
Voltage - Supply	2.25V ~ 3.6V
Temperature Range - Operating	-55°C ~ 125°C
Current - Supply (Max)	35mA
Mounting Type	Surface Mount
Package / Case	6-SMD, No Lead Exposed Pad
Size / Dimension	0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max)	0.035" (0.90mm)
Current - Supply (Disable) (Max)	22mA
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1340414-ASVMPC-26.000MHZ-Z-T
Ultra Librarian 3D Model	Ultra Librarian ASVMPC-26.000MHZ-Z-T CAD Model

Alternative Products

Description

The ASVMPC-26.000MHZ-Z-T is a pure silicon™ XO (standard) oscillator from Abracon LLC.

Type: Pure Silicon™ XO (Standard)
Frequency: 26 MHz
Current Supply: 35mA
Operating Temperature: -55°C to 125°C
Packaging: Tape & Reel (TR)
Quantity per Package: 1000
Package: 6-SMD, No Lead Exposed Pad
Size/Dimension: 0.276" L x 0.197" W (7.00mm x 5.00mm)
Enable/Disable: Enable/Disable
Output: CMOS
