The TSM9926 is a dual N-channel enhancement mode power MOSFET from Advanced Power Electronics Corp (APEC). It is designed for synchronous rectification, DC-DC conversion, and power management applications. Its key features include low on-resistance and fast switching speed.

Applications:

• Synchronous rectification
• DC-DC converters
• Load switching
• Power management in portable devices
• Battery chargers

Features:

• Dual N-channel MOSFET
• Low on-resistance (RDS(on))
• Fast switching speed
• Logic level gate drive
• RoHS compliant

Benefits:

• High efficiency power conversion
• Reduced power losses
• Simplified gate drive requirements
• Compact design due to dual MOSFET in a single package
• Improved thermal performance

Additional Details:

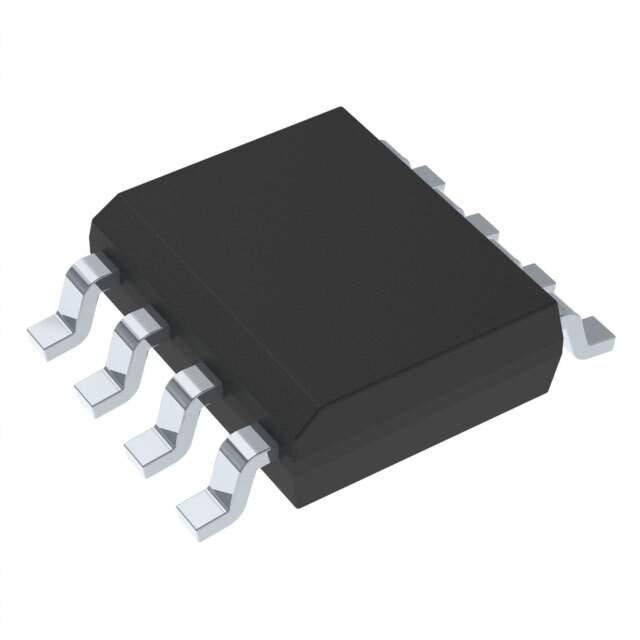

The TSM9926 integrates two N-channel MOSFETs in a single SOP-8 package. Its advanced trench technology provides excellent RDS(on) and low gate charge. This dual MOSFET configuration allows for more efficient and compact designs. The low on-resistance reduces conduction losses, improving overall system efficiency. It's used extensively in applications requiring efficient power conversion and switching. The specific on-resistance value (RDS(on)), gate charge, and other parameters are available in the datasheet. This MOSFET is particularly well-suited for synchronous rectification in DC-DC converters, where its low on-resistance minimizes losses in the secondary-side rectifier. The logic-level gate drive allows it to be directly controlled by microcontrollers and other low-voltage logic circuits. The device is designed to withstand high operating temperatures and provides robust performance in a variety of power management applications.
