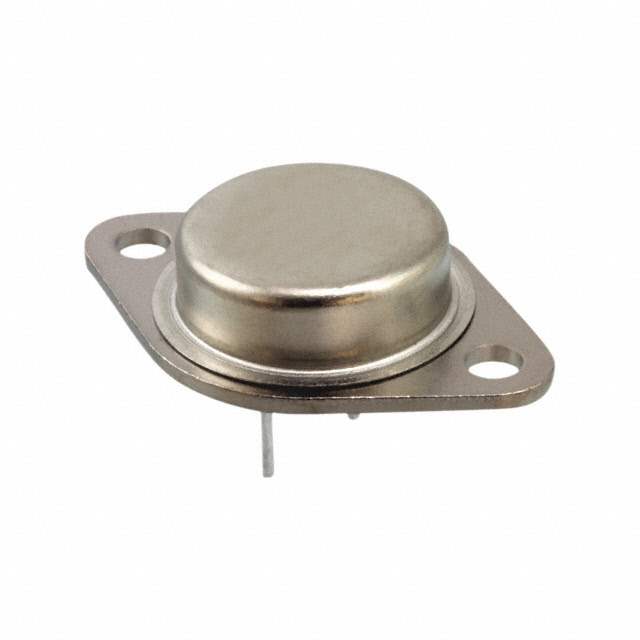

JANTX2N3716 Real Image
Same model may have multiple batches, images only for reference.

JANTX2N3716

Part No JANTX2N3716
Manufacturer Aeroflex Metelics, Division of MACOM
Catalog Transistors (BJT) - Single
Description DIODE
Datasheet
JANTX2N3716 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Aeroflex Metelics, Division of MACOM
Packaging Bulk
Status Active
Transistor Polarity NPN
Maximum Current Collector 10A
VCEO Maximum Collector-Emitter Breakdown Voltage 80V
Max Vce (sat) 2.5V @ 2A, 10A
Collector Cut-off Current(Max) 10μA
Typical Gain (hFE) (Min) 30 @ 3A, 2V
Maximum Power Dissipation 5W
Temperature Range - Operating -65°C to 200°C (TJ)
Mounting Through Hole
Case / Package TO-204AA (TO-3)
Win Source Part Number 142070-JANTX2N3716
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JANTX2N3716 CAD Model

Description

The 142070-JANTX2N3716 is a NPN transistor offered by Aeroflex Metelics, Division of MACOM.

  • Mounting Type: through-hole
  • Maximum Current Collector: 10A
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 80V
  • Maximum Power Dissipation: 5W
  • Typical Gain (hFE) (Min): 30 @ 3A, 2V
  • Category: Discrete Semiconductor Products
  • Status: active
  • Temperature Range: -65°C to 200°C (TJ)
  • Packaging: TO-204AA (TO-3) case
