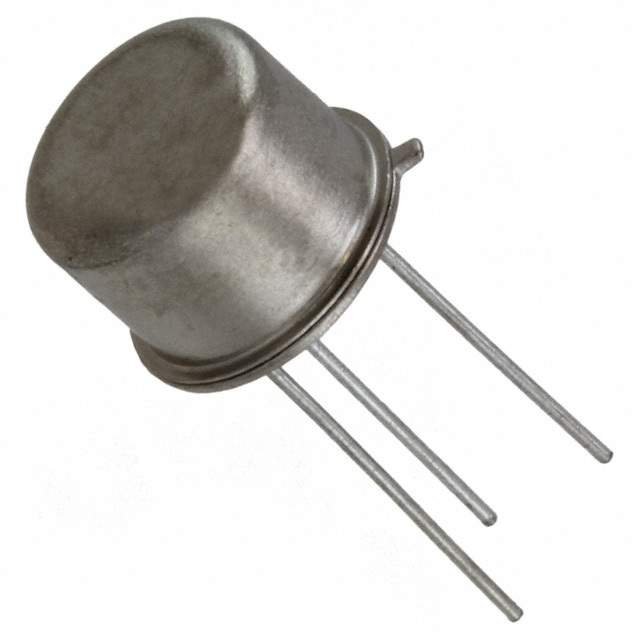

JANTX2N5153 Real Image
Same model may have multiple batches, images only for reference.

JANTX2N5153

Part No JANTX2N5153
Manufacturer Aeroflex Metelics, Division of MACOM
Catalog Transistors (BJT) - Single
Description DIODE
Datasheet
JANTX2N5153 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Aeroflex Metelics, Division of MACOM
Series Military, MIL-PRF-19500/545
Packaging Bulk
Transistor Type PNP
Current - Collector (Ic) (Maximum) 2A
Voltage - Collector Emitter Breakdown (Maximum) 80V
Vce Saturation (Maximum) @ Ib, Ic 1.5V @ 500mA, 5A
Current - Collector Cutoff (Maximum) 50μA
DC Current Gain (hFE) (Minimum) @ Ic, Vce 70 @ 2.5A, 5V
Power - Max 1W
Operating Temperature Range -65°C ~ 200°C (TJ)
Mounting Style Through Hole
Package TO-205AD, TO-39-3 Metal Can
Manufacturer Package TO-39
Win Source Part Number 762249-JANTX2N5153
Popularity Medium
Supply and Demand Status Limited
Family Name 2N5153
Country of Origin United States of America
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian JANTX2N5153 CAD Model

Description

This 2N5153 transistor is a PNP type with a power of 1W and manufactured by Aeroflex Metelics, Division of MACOM.

  • Frequency Transition: -
  • Current Collector (Ic) (maximum): 2A
  • Voltage Collector Emitter Breakdown (maximum): 80V
  • Vce saturation (maximum) @ Ib, Ic: 1.5V @ 500mA, 5A
  • Current Collector Cutoff (maximum): 50μA
  • DC Current Gain (hFE) (minimum) @ Ic, Vce: 70 @ 2.5A, 5V
  • Package: TO-205AD, TO-39-3 Metal Can
  • Mounting: Through-hole
  • Operating Temperature Range: -65°C to 200°C (TJ)
  • Country of Origin: United States of America
  • Estimated EOL Date: 2028
  • Supply Status: Limited
  • Demand Status: Limited
