Same model may have multiple batches, images only for reference.

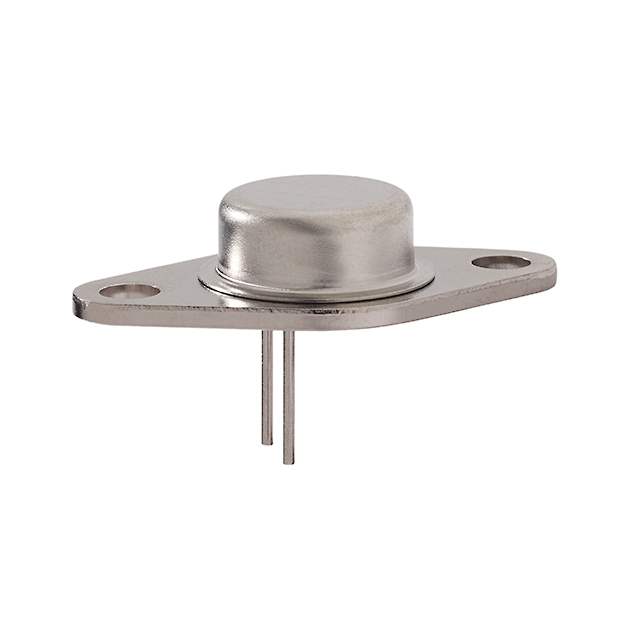

JANTX2N6299 Real Image
Same model may have multiple batches, images only for reference.

JANTX2N6299

Part No JANTX2N6299
Manufacturer Aeroflex Metelics, Division of MACOM
Catalog Transistors (BJT) - Single
Description DIODE
Datasheet
JANTX2N6299 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Aeroflex Metelics, Division of MACOM
Packaging Bulk
Status Active
Transistor Polarity PNP - Darlington
Maximum Current Collector 8A
VCEO Maximum Collector-Emitter Breakdown Voltage 80V
Max Vce (sat) 2V @ 80mA, 8A
Collector Cut-off Current(Max) 500μA
Typical Gain (hFE) (Min) 750 @ 4A, 3V
Maximum Power Dissipation 64W
Temperature Range - Operating -65°C to 175°C (TJ)
Mounting Through Hole
Dimension TO-213AA, TO-66-2
Win Source Part Number 133738-JANTX2N6299
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian JANTX2N6299 CAD Model

Description

The 133738-JANTX2N6299 is a PNP-Darlington transistor offered by Aeroflex Metelics, Division of MACOM.

  • Mounting Type: through-hole
  • Maximum Current Collector: 8A
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 80V
  • Maximum Power Dissipation: 64W
  • Typical Gain (hFE) (Min): 750 @ 4A, 3V
  • Category: Discrete Semiconductor Products
  • Status: active
  • Temperature Range: -65°C to 175°C (TJ)
  • Packaging: TO-213AA, TO-66-2 case
