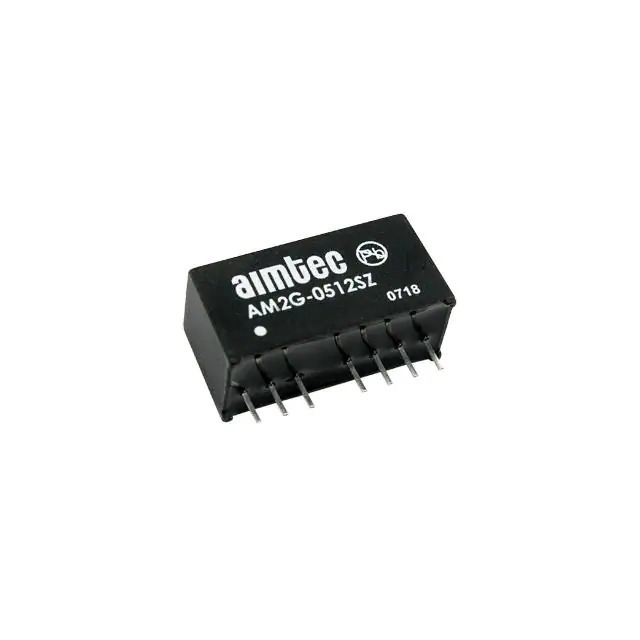

Same model may have multiple batches, images only for reference.

AM2G-2403SZ

Name: AM2G-2403SZ
Brand: AIMTEC
SKU: 1354271
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	AM2G-2403SZ
Manufacturer	AIMTEC
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 3.3V 1.7W / Isolated Module DC DC Converter 1 Output 3.3V 500mA 18V - 36V Input
Datasheet	AM2G-2403SZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	aimtec
Series	AM2G-Z (2W)
Package	Tube
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	3.3V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	500mA
Power (Watts)	2 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Features	Remote On/Off
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	70%
Mounting Type	Through Hole
Package / Case	8-SIP Module
Size / Dimension	0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm)
Supplier Device Package	-
Control Features	-
Approval Agency	CE, cURus, UL
Base Product Number	AM2G
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.40.9580
Win Source Part Number	1354271-AM2G-2403SZ
Ultra Librarian 3D Model	Ultra Librarian AM2G-2403SZ CAD Model

Alternative Products

Description

The aimtec AM2G-Z (2W) Isolated Module is a board mount DC-DC converter from aimtec.

Power: 2 watts
Current Output: 500mA
Input Voltage: 18V to 36V
Output Voltage: 3.3V
Remote On/Off: Yes
Size: 0.86" L x 0.36" W x 0.44" H (21.9mm x 9.2mm x 11.1mm)
Application: ITE (Commercial)
Efficiency: 70 percent
Package: Tube
ECCN: EAR99
Approvals: CE, cURus, and UL
Voltage Isolation: 1 kV
Operating Temperature: -40°C to 85°C
