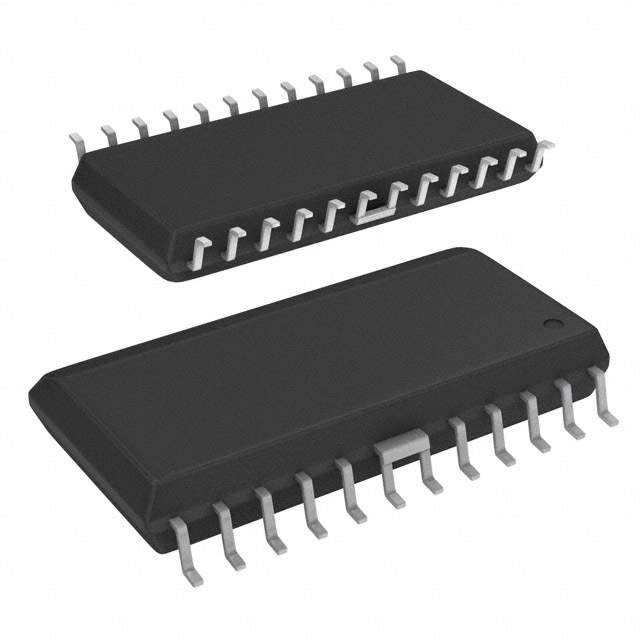

A3959SLB Real Image
Same model may have multiple batches, images only for reference.

A3959SLB

Part No A3959SLB
Manufacturer Allegro MicroSystems, LLC
Catalog PMIC - Motor Drivers, Controllers
Description DMOS FULL-BRIDGE PWM MOTOR DRIVER | IC MOTOR DRIVER 4.5V-5.5V 24SOIC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Allegro MicroSystems, LLC
Packaging Tube
Status Obsolete
Motor Type - AC, DC Brushed DC
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge (2)
Interface Parallel
Technology DMOS
Applications General Purpose
Output Current 3A
Supply Voltage (V) 4.5V ~ 5.5V
Load Voltage (V) 9.5V ~ 50V
Temperature Range - Operating -20°C ~ 150°C
Mounting Style SMD
Manufacturer Package 24-SOIC
Supplier Device Package 24-SOIC
Family Part Number A3959
Manufacturer Pack Quantity 31
MSL Level 1 (Unlimited)
Win Source Part Number 1134597-A3959SLB
Manufacturer Homepage www.allegromicro.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Motor Drive & Control
Ultra Librarian 3D Model Ultra Librarian A3959SLB CAD Model

Description

The A3959SLB is a fully integrated DMOS driver IC designed for brushed DC motors.

  • Manufacturer: Allegro MicroSystems, LLC
  • Package: 24-SOIC
  • Popularity: Medium

It is ideal for general-purpose applications. It supports a load voltage range of 9.5V to 50V and has a supply voltage range of 4.5V to 5.5V. It is an ideal choice for applications that require high-precision motion control and can be used in motor drive and control systems.
