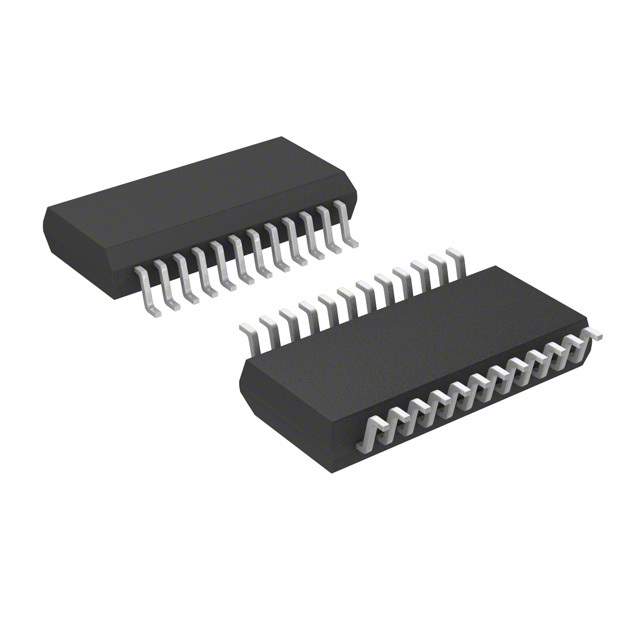

ACS709LLFTR-20BB-T Real Image
Same model may have multiple batches, images only for reference.

ACS709LLFTR-20BB-T

Part No ACS709LLFTR-20BB-T
Manufacturer Allegro MicroSystems, LLC
Catalog Current Transducers
Description SENSOR CURRENT HALL 20A AC/DC
Datasheet
ACS709LLFTR-20BB-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Allegro MicroSystems, LLC
Packaging Reel - TR
Status Active
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 20A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 56mV/A
Frequency DC to 120kHz
Linearity ±0.25%
Accuracy ±2%
Supply Voltage - Operating 3 V to 5.5 V
Response Time 4μs
Current - Supply (Max) 14.5mA
Temperature Range - Operating -40°C to 150°C
Polarization Bidirectional
Mounting SMD (SMT)
Dimension 24-SSOP (0.154", 3.90mm Width)
Win Source Part Number 123617-ACS709LLFTR-20BB-T
Popularity Medium
Supply and Demand Status Limited
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian ACS709LLFTR-20BB-T CAD Model

Description

ACS709LLFTR-20BB-T Overview

The ACS709LLFTR-20BB-T current sensor is tailored for high-precision current monitoring, especially in scenarios that require real-time data and stability under variable conditions. Its advanced design is perfect for cutting-edge electronic projects.

  • Applications:
    • Electric vehicle charging systems
    • Renewable energy installations
    • Industrial power systems
  • Features and Benefits:
    • High-resolution current measurement capability
    • Compact package for space-limited applications
    • Exceptional stability across temperature ranges

The ACS709LLFTR-20BB-T is ideal for energy-sensitive projects that necessitate superior monitoring precision and efficiency.
