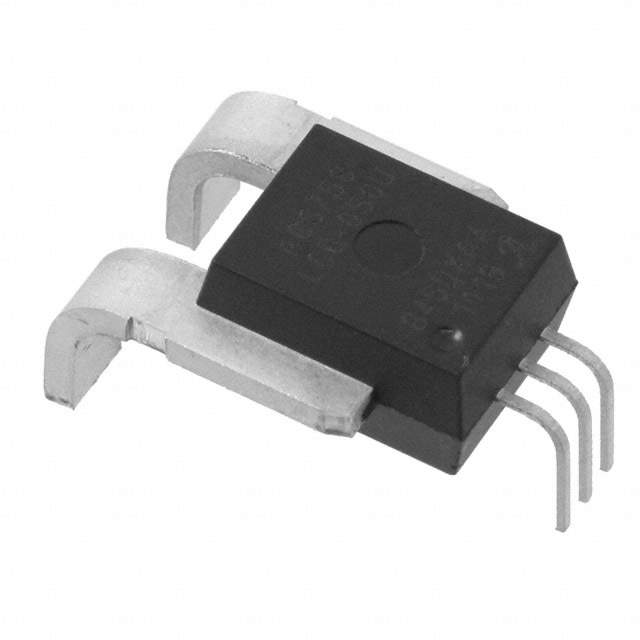

ACS759KCB-150B-PFF-T

Name: ACS759KCB-150B-PFF-T
Brand: Allegro MicroSystems, LLC
SKU: 1336494
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ACS759KCB-150B-PFF-T
Manufacturer	Allegro MicroSystems, LLC
Catalog	Current Transducers
Description	SENSOR CURRENT HALL 150A AC/DC / Current Sensor 150A 1 Channel Hall Effect, Open Loop Bidirectional 5-CB Formed Leads, PFF
Datasheet	ACS759KCB-150B-PFF-T Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Sensors, Transducers>Current Sensors
Manufacturer	Allegro MicroSystems
Packaging	Tube
For Measuring	AC/DC
Sensor Type	Hall Effect, Open Loop
Current - Sensing	150A
Number of Channels	1
Output	Ratiometric, Voltage
Sensitivity	8.8mV/A
Frequency	DC ~ 120kHz
Linearity	±1%
Accuracy	±4%
Voltage - Supply	3V ~ 3.6V
Response Time	4µs
Current - Supply (Max)	13.5mA
Temperature Range - Operating	-40°C ~ 125°C
Polarization	Bidirectional
Mounting	Through Hole
Case / Package	5-CB Formed Leads, PFF
Supplier Device Package	5-CB Module
Base Product Number	ACS759
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Other Part Number	ALLALLACS759KCB-150B-PFF-T,620-1464-5,ACS759KCB150BPFFT,2156-ACS759KCB-150B-PFF-T
Standard Package	816
Win Source Part Number	1336494-ACS759KCB-150B-PFF-T
Ultra Librarian 3D Model	Ultra Librarian ACS759KCB-150B-PFF-T CAD Model

Alternative Products

Description

The Allegro MicroSystems ACS759KCB-150B-PFF-T is a current sensor that can measure both AC and DC.

Sensor Type: Hall effect open loop.
Polarization: Bidirectional.
Sensitivity: 8.8mV/A.
Sensing: Up to 150A.
Accuracy: ±4%.
Linearity: ±1%.
Operating Temperature: -40°C to 125°C.
Voltage Supply: 3V to 3.6V.
Package: 5-CB formed leads, PFF.
Standard Package: 816.
Win Source Part Number: 1336494-ACS759KCB-150B-PFF-T.
