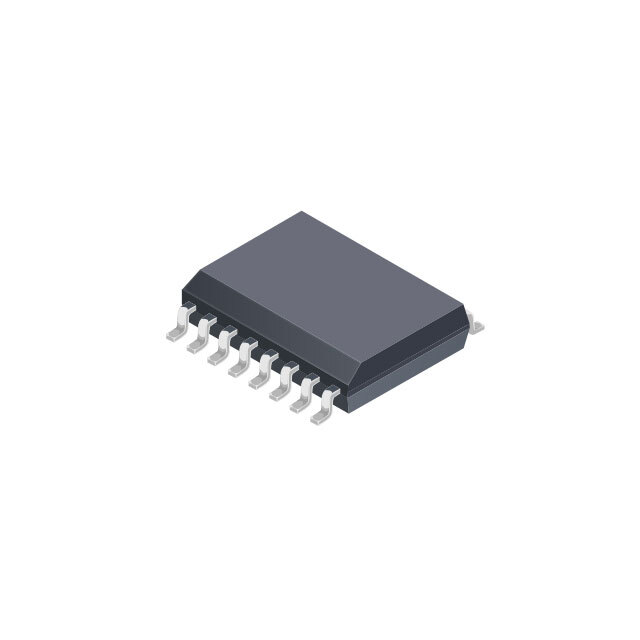

Same model may have multiple batches, images only for reference.
ACS710KLATR-25CB-NL-T
Same model may have multiple batches, images only for reference.

ACS710KLATR-25CB-NL-T

Part No ACS710KLATR-25CB-NL-T
Manufacturer Allegro MicroSystems, LLC
Catalog Current Transducers
Description SENSOR CURRENT HALL 25A AC/DC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors
Estimated Pruduction Lead Time 17 Weeks
Features Current Sensor 25A 1 Channel Hall Effect, Open Loop Bidirectional 16-SOIC (0.295", 7.50mm Width)
Manufacturer Allegro MicroSystems, LLC
Package Reel - TR
Operating Temperature Range -40°C ~ 125°C
Mounting Surface Mount
Package 16-SOIC (0.295", 7.50mm Width)
Case / Package 16-SOIC
Family Name ACS710
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 620-1529-6, 620-1529-1, 620-1529-2, ACS710KLATR-25CB-NL-T-ND
Quantity per package 1000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 859334-ACS710KLATR-25CB-NL-T
Ultra Librarian 3D Model Ultra Librarian ACS710KLATR-25CB-NL-T CAD Model

Description

The Allegro MicroSystems ACS710KLATR-25CB-NL-T is a current sensor with a 25A 1 channel Hall effect and open loop bidirectional.

  • Package: 16-SOIC (0.295", 7.50mm width)
  • Application: Sensors
  • Temperature Range: -40°C to 125°C
  • REACH: REACH unaffected
  • Supply and demand: Limited
  • Quantity per package: 1000
  • Estimated production lead time: 17 weeks
  • ECCN: EAR99
  • HTSUS: 8542.39.0001
