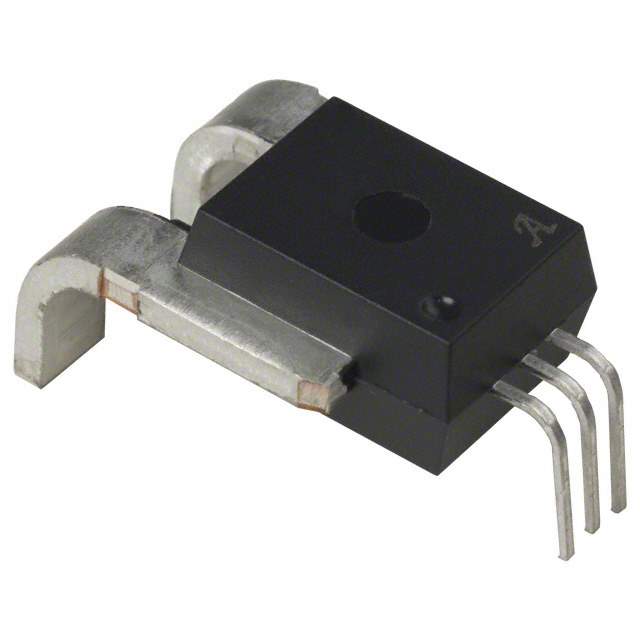

ACS750LCA-050 Real Image
Same model may have multiple batches, images only for reference.

ACS750LCA-050

Part No ACS750LCA-050
Manufacturer Allegro MicroSystems, LLC
Catalog Current Transducers
Description Current Sensor
Datasheet
ACS750LCA-050 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Allegro MicroSystems, LLC
Packaging Tube
Part Status Obsolete(EOL)
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 50A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 40mV/A
Frequency DC ~ 13kHz
Linearity ±5%
Accuracy ±2%
Operating Supply Voltage 5V
Response Time 27μs
Maximum Supply Current 10mA
Operating Temperature Range -40°C ~ 150°C
Polarization Bidirectional
Mounting Style Through Hole
Package 5-CA Formed Leads
Win Source Part Number 1135512-ACS750LCA-050
Manufacturer Homepage www.allegromicro.com
Popularity Medium
Supply and Demand Status Limited
Family Name ACS750LCA-050
Introduction Date January 09, 2003
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian ACS750LCA-050 CAD Model

Description

The ACS750LCA-050 from Allegro MicroSystems, LLC is a Hall effect open-loop current sensor designed for measuring AC/DC current with a bidirectional polarization.

  • Sensitivity: 40mV/A
  • Current-Sensing Rating: 50A
  • Accuracy: ±2%
  • Linearity: ±5%
  • Response Time: 27μs
  • Frequency Range: DC to 13kHz
  • Part Status: obsolete
  • Popularity: medium
  • Category: Sensors and Transducers
