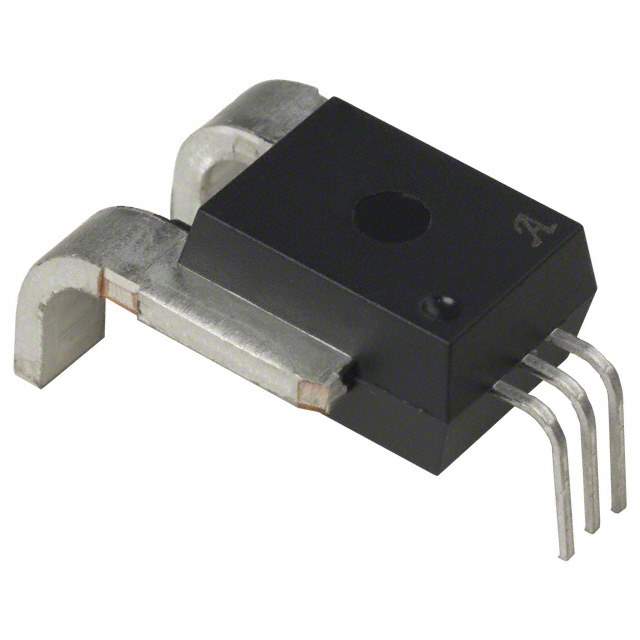

ACS756SCA-100B-PFF-T Real Image ACS756SCA-100B-PFF-T real image ACS756SCA-100B-PFF-T real image601
Same model may have multiple batches, images only for reference.
ACS756SCA-100B-PFF-T Real Image ACS756SCA-100B-PFF-T real image ACS756SCA-100B-PFF-T real image601
ACS756SCA-100B-PFF-T Real Image ACS756SCA-100B-PFF-T real image ACS756SCA-100B-PFF-T real image601
Same model may have multiple batches, images only for reference.

ACS756SCA-100B-PFF-T

Part No ACS756SCA-100B-PFF-T
Manufacturer Allegro MicroSystems, LLC
Catalog Current Transducers
Description SENSOR CURRENT HALL 100A AC/DC
Datasheet
ACS756SCA-100B-PFF-T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Allegro MicroSystems, LLC
Packaging Tube/Rail
Status Obsolete(EOL)
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 100A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 20mV/A
Frequency DC to 120kHz
Linearity ±1.75%
Accuracy ±7%
Supply Voltage - Operating 3 V to 5.5 V
Response Time 3μs
Current - Supply (Max) 14mA
Temperature Range - Operating -20°C to 85°C
Polarization Bidirectional
Mounting Through Hole
Dimension 5-CA Formed Leads
Win Source Part Number 198516-ACS756SCA-100B-PFF-T
Popularity Medium
Supply and Demand Status Limited
Quantity per package 34
Ultra Librarian 3D Model Ultra Librarian ACS756SCA-100B-PFF-T CAD Model

Description

Product Overview

The ACS756SCA-100B-PFF-T is a high-performance current sensor designed to provide high precision and reliability for diverse applications. Its robust design is optimal for high-current circuits, ensuring consistent performance even under challenging conditions.

Features and Benefits

  • Versatile Current Range: Suitable for diverse power conditions.
  • High Bandwidth: Supports dynamic signal processing.
  • Integrated Filtering: Reduces electrical noise.
  • Robust Packaging: Enhances durability and lifespan.

Applications

  • Electric Power Tools
  • Residential and Commercial Energy Metering
  • Renewable Energy Systems

Engineered for extensive service in demanding conditions, the ACS756SCA-100B-PFF-T is ideal for energy-efficient electronics and industrial controls.
