Same model may have multiple batches, images only for reference.

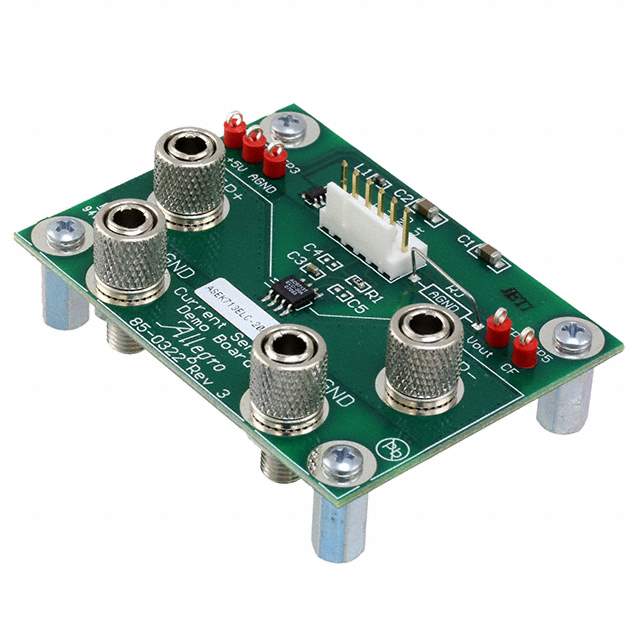

ASEK713ELC-20A-T-DK Real Image
Same model may have multiple batches, images only for reference.

ASEK713ELC-20A-T-DK

Part No ASEK713ELC-20A-T-DK
Manufacturer Allegro MicroSystems, LLC
Catalog Evaluation Boards - Sensors
Description BOARD DEMO 713ELC-20A SENSOR / ACS713 - Current Sensor Sensor Evaluation Board
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Development Boards, Kits, Programmers - Evaluation Boards - Sensors
Mfr Allegro MicroSystems
Package Box
Sensor Type Current Sensor
Sensing Range 20A
Sensitivity 185mV/A
Voltage - Supply 4.5V ~ 5.5V
Supplied Contents Board(s)
Utilized IC / Part ACS713
Base Product Number ASEK71
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8473.30.1180
Win Source Part Number 1347189-ASEK713ELC-20A-T-DK
Ultra Librarian 3D Model Ultra Librarian ASEK713ELC-20A-T-DK CAD Model

Description

The ACS713 Current Sensor is a sensing device that can measure up to 20A of current. It has a sensitivity of 185mV/A and operates @ a voltage supply of 4.5V to 5.5V.

  • Sensing Range: up to 20A
  • Sensitivity: 185mV/A
  • Voltage Supply: 4.5V to 5.5V
  • IC/Part: ACS713
  • Sensor Type: current sensor
  • Package: box
  • Package Includes: one board(s)
  • ECCN: EAR99
  • REACH: unaffected
  • MSL Level: 1 (unlimited)
  • HTSUS: 8473.30.1180
  • Manufacturer: Allegro MicroSystems
  • Base Product Number: ASEK71
