The AOZ2253EQI-30 is a highly efficient and compact synchronous buck regulator from Alpha & Omega Semiconductor (AOS). It is designed for a wide range of applications requiring step-down conversion from a higher voltage to a lower voltage with high efficiency and minimal board space. This regulator integrates a control MOSFET and a synchronous MOSFET into a single package, minimizing external component count and simplifying PCB layout.

Applications

• Point-of-Load (POL) Regulators: Providing regulated voltage to sensitive components on a PCB.
• Notebook Computers: Powering core logic and peripherals.
• LCD Monitors and TVs: Powering internal circuits.
• Set-Top Boxes: Providing regulated power to various components.
• Networking Equipment: Powering routers, switches, and modems.
• Industrial Applications: General purpose DC-DC conversion in industrial settings.

Features

• Input Voltage Range: 4.5V to 18V operation, allowing for flexibility in power source.
• Output Voltage Range: Adjustable down to 0.8V, catering to various voltage requirements.
• Continuous Output Current: Up to 3A, suitable for moderate power applications.
• High Efficiency: Achieving efficiencies up to 95% under typical operating conditions, reducing heat dissipation and improving overall system performance.
• Integrated MOSFETs: Incorporates both high-side and low-side MOSFETs for synchronous rectification.
• Fixed Frequency Operation: Operates at a fixed switching frequency (typically around 500kHz), simplifying EMI filter design.
• Current Mode Control: Provides excellent line and load regulation.
• Soft-Start Function: Limits inrush current during startup, preventing voltage overshoot and stress on components.
• Over-Current Protection (OCP): Protects the regulator and load from excessive current draw.
• Short-Circuit Protection (SCP): Shuts down the regulator in the event of a short circuit, preventing damage.
• Over-Temperature Protection (OTP): Protects the regulator from overheating by shutting it down when the temperature exceeds a safe limit.
• Enable/Disable Control: Allows for easy power sequencing and system control.

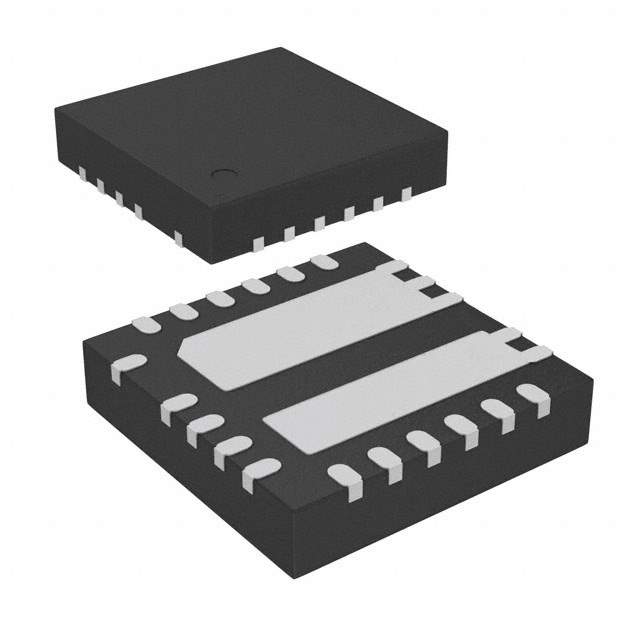

• Compact Package: Available in a small QFN package for space-constrained applications.

Benefits

• High Efficiency: Reduces power loss and heat generation, leading to improved system reliability and reduced cooling requirements.
• Compact Size: Saves valuable board space, allowing for smaller and more densely populated designs.
• Simplified Design: Integrated MOSFETs and minimal external components simplify the design process and reduce BOM cost.
• Robust Protection: Over-current, short-circuit, and over-temperature protection ensure reliable operation and prevent damage to the regulator and load.
• Wide Input Voltage Range: Provides flexibility in power source selection.
• Adjustable Output Voltage: Allows for customization to meet specific voltage requirements.

Additional Details

The AOZ2253EQI-30 utilizes a current mode control architecture, which provides fast transient response and excellent line and load regulation. The soft-start function ensures a smooth startup, preventing voltage overshoot and stress on components. The integrated protection features, including over-current, short-circuit, and over-temperature protection, ensure reliable operation and prevent damage to the regulator and load. The device is available in a thermally enhanced QFN package, which provides excellent thermal performance and allows for operation at high ambient temperatures. It is RoHS compliant and lead-free.
