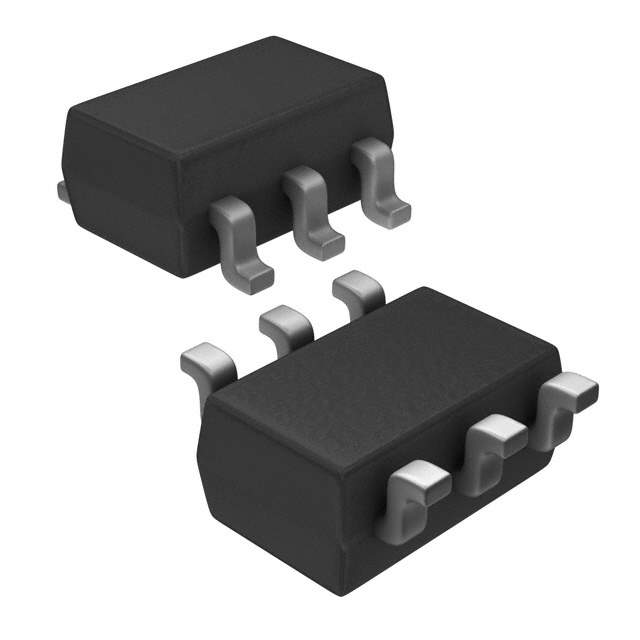

AO6408 Real Image
Same model may have multiple batches, images only for reference.

AO6408

Part No AO6408
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 20V 8.8A 6-TSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Polarity N-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 8.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 10V
Gate-Source Threshold Voltage 1V @ 250μA
Max Gate Charge 22nC @ 4.5V
Max Input Capacitance 2200pF @ 10V
Maximum Gate-Source Voltage ±12V
Power Dissipation (Max) 2W (Ta)
Maximum Rds On at Id,Vgs 18 mOhm @ 8.8A, 10V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package 6-TSOP
Dimension SC-74, SOT-457
Win Source Part Number 103059-AO6408
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AO6408 CAD Model

Description

AO6408 MOSFET

The AO6408 provides exceptional stability and performance, suitable for a variety of high-power applications.

  • Applications: Inverters, UPS systems, audio amplification.

Features and Benefits

  • High Current Capability: Supports high current loads with stability.
  • Enhanced Thermal Performance: Reduces overheating risks during extended use.
  • Efficiency: Designed to minimize energy loss and save power.

Perfect for high-power and high-efficiency applications, the AO6408 delivers reliable and robust performance under various load conditions.
