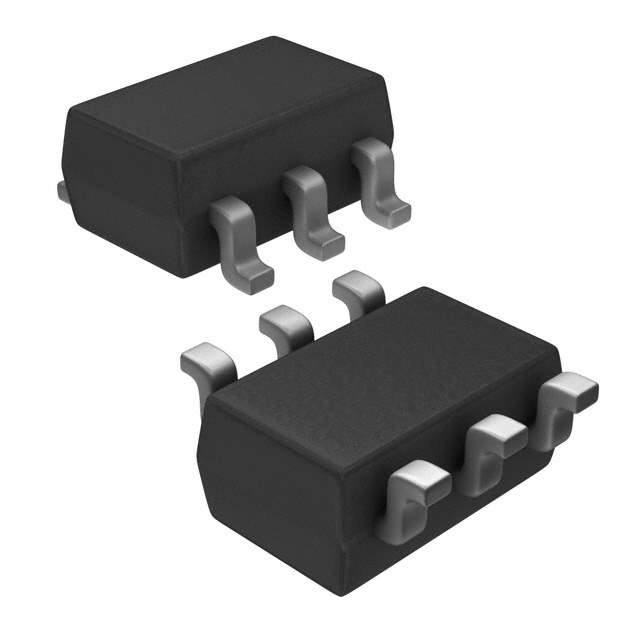

The AO6414L is a P-Channel enhancement mode MOSFET from Alpha & Omega Semiconductor. It is designed for load switching, power management, and battery protection applications in portable devices, such as smartphones, tablets, and laptops. It features a low on-resistance (RDS(on)) and a low gate charge, which contribute to high efficiency and fast switching speeds.

Applications

• Load Switching
• Power Management
• Battery Protection
• Portable Devices (Smartphones, Tablets, Laptops)
• DC-DC Converters

Features

• P-Channel Enhancement Mode: Provides a simple and efficient solution for load switching.
• Low On-Resistance (RDS(on)): Minimizes conduction losses and improves efficiency.
• Low Gate Charge (Qg): Enables fast switching speeds and reduces driver power requirements.
• Logic Level Compatible: Can be driven directly from logic-level signals.
• Small Footprint: Compact package size suitable for space-constrained applications.

Benefits

• High Efficiency: Low on-resistance and gate charge minimize power losses.
• Fast Switching: Low gate charge enables quick turn-on and turn-off times.
• Simplified Design: Logic level compatibility simplifies the gate drive circuitry.
• Compact Size: Suitable for portable devices where space is limited.

Technical Specifications:

• Transistor Type: P-Channel MOSFET
• Drain-Source Voltage (VDS): -30V
• Gate-Source Voltage (VGS): ±20V
• Drain Current (ID): -5.5A
• On-Resistance (RDS(on)): 25 mOhms (at VGS = -10V)
• Gate Charge (Qg): 7.5 nC
• Power Dissipation (PD): 2W
• Operating Temperature: -55°C to +150°C
• Package: DFN3x3
