Same model may have multiple batches, images only for reference.

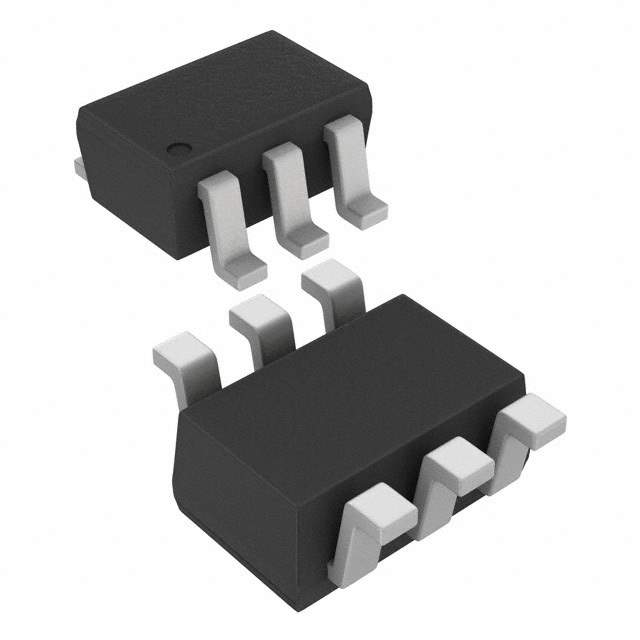

AO7411 Real Image
Same model may have multiple batches, images only for reference.

AO7411

Part No AO7411
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 1.8A SC70-6
Datasheet
AO7411 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 1.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V
Gate-Source Threshold Voltage 800mV @ 250μA
Max Gate Charge 6.24nC @ 4.5V
Max Input Capacitance 524pF @ 10V
Maximum Gate-Source Voltage ±8V
Power Dissipation (Max) 630mW (Ta)
Maximum Rds On at Id,Vgs 120 mOhm @ 1.8A, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SC-70-6
Dimension 6-TSSOP, SC-88, SOT-363
Win Source Part Number 1016835-AO7411
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AO7411 CAD Model

Description

The Alpha & Omega Semiconductor Inc. AO7411 is a MOSFET transistor with a P-Channel polarity.

  • Polarity: P-Channel
  • Maximum Power Dissipation: 630mW @ an operating temperature range of -55°C to 150°C
  • Drain-Source Breakdown Voltage: 20V
  • Continuous Drain Current @ 25°C: 1.8A
  • Gate-Source Threshold Voltage: 800mV @ 250μA
  • Maximum Gate Charge: 6.24nC @ 4.5V
  • Maximum Input Capacitance: 524pF @ 10V
  • Maximum Rds On @ Id,Vgs: 120 mOhm @ 1.8A, 4.5V
