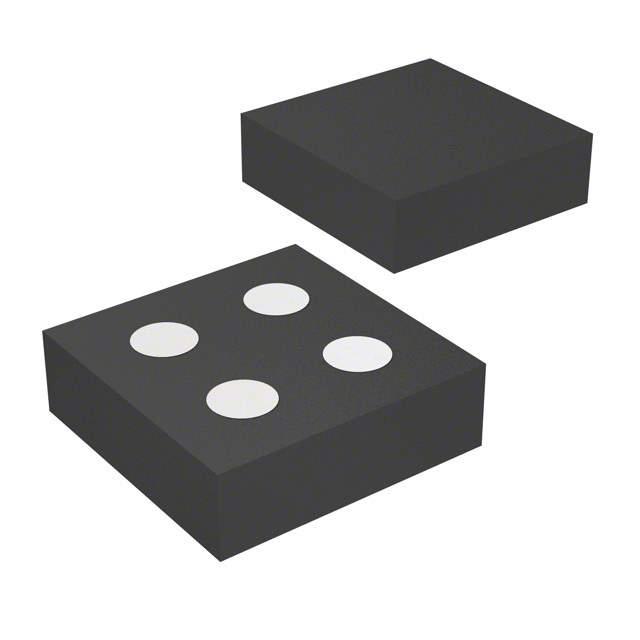

AOC2413 Real Image
Same model may have multiple batches, images only for reference.

AOC2413

Part No AOC2413
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 8V 3.5A 4WLCSP / Trans MOSFET P-CH 8V 3.5A 4-Pin Alpha DFN
Datasheet
AOC2413 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel package
Part Status Obsolete(EOL)
Channel Type Type P
Technology MOSFET
Drain Source Voltage 8V
Current - Continuous Drain (Id) @ 25°C 3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.2V, 2.5V
Vgs(th) (Maximum) @ Id 650mV @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 27nC @ 4.5V
Input Capacitance (Ciss) (Maximum) @ Vds 1935pF @ 4V
Vgs (Maximum) ±5V
Power Dissipation (Maximum) 550mW (Ta)
Rds On (Maximum) @ Id, Vgs 28 mOhm @ 1.5A, 2.5V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Manufacturer Package 4-AlphaDFN (1.57x1.57)
Package 4-SMD, No Lead
Win Source Part Number 768546-AOC2413
Popularity Medium
Supply and Demand Status Limited
Family Name AOC2413
Introduction Date January 07, 2013
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian AOC2413 CAD Model

Description

The AOC2413 is a MOSFET from Alpha & Omega Semiconductor Inc. It is a P-channel type MOSFET with a continuous drain current of 3.5A (Ta) and a maximum power dissipation of 550mW (Ta).

  • Gate Charge: 27nC @ 4.5V
  • Input Capacitance: 1935pF @ 4V
  • Maximum Vgs: ±5V
  • Maximum Vgs(th): 650mV @ 250μA
  • Status: Obsolete (EOL)
  • Supply and Demand Status: Limited
  • Package: 4-SMD, no lead
  • Mounting: SMD
  • Operating Temperature Range: -55°C to 150°C
  • ECCN: EAR99
