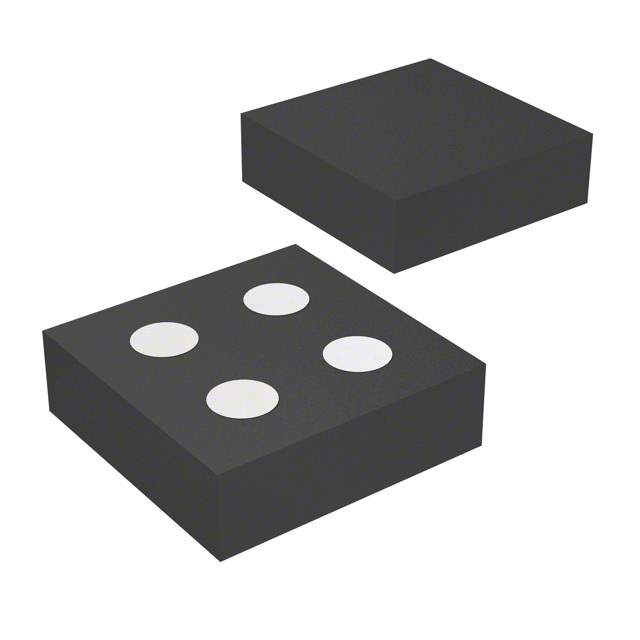

AOC2417 Real Image
Same model may have multiple batches, images only for reference.

AOC2417

Part No AOC2417
Manufacturer Alpha & Omega Semiconductor Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 3.5A 4WLCSP / Trans MOSFET P-CH 20V 3.5A 4-Pin Alpha DFN
Datasheet
AOC2417 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Alpha & Omega Semiconductor Inc.
Packaging Reel package
Part Status Obsolete(EOL)
Channel Type Type P
Technology MOSFET
Drain Source Voltage 20V
Current - Continuous Drain (Id) @ 25°C 3.5A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 2.5V, 10V
Vgs(th) (Maximum) @ Id 1.4V @ 250μA
Gate Charge (Qg) (Maximum) @ Vgs 40nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 1355pF @ 10V
Vgs (Maximum) ±12V
Power Dissipation (Maximum) 550mW (Ta)
Rds On (Maximum) @ Id, Vgs 32 mOhm @ 1.5A, 10V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting SMD
Manufacturer Package 4-AlphaDFN (1.57x1.57)
Package 4-SMD, No Lead
Win Source Part Number 768549-AOC2417
Popularity Medium
Supply and Demand Status Limited
Family Name AOC2417
Introduction Date November 26, 2012
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian AOC2417 CAD Model

Description

The AOC2417 is a P-channel MOSFET manufactured by Alpha & Omega Semiconductor Inc.. It is an SMD component that comes in a 4-AlphaDFN (1.57x1.57) package and has the following specifications:

  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Maximum Power Dissipation: 550mW (Ta)
  • Maximum Drain-Source Voltage: 20V
  • Popularity: Medium
  • Supply and Demand: Limited
